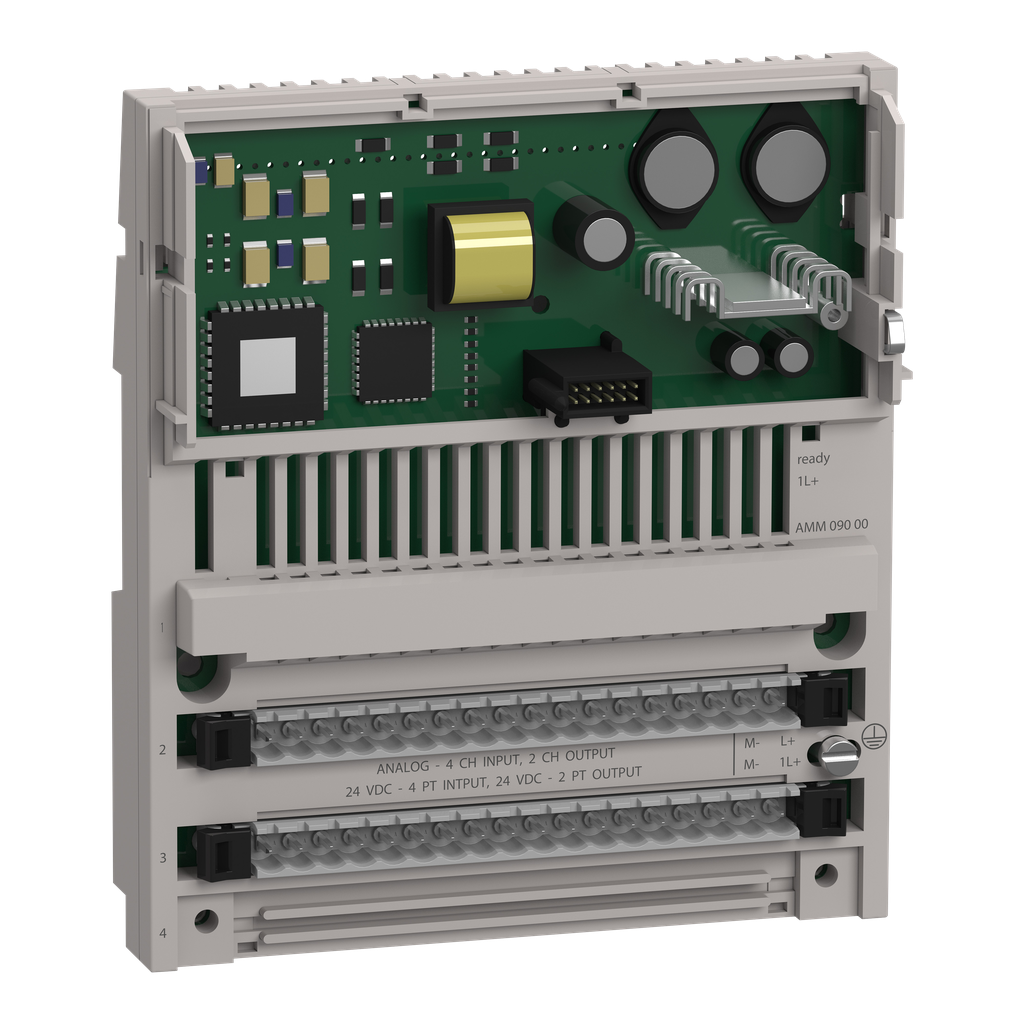

170AMM09000 – distributed analog/discrete I/O Modicon Momentum
170AMM09000
distributed analog/discrete I/O Modicon Momentum

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analogue/discrete module has 1 group of 2 discrete outputs, 4 discrete inputs, 4 analogue differential inputs and 2 analogue output with positive discrete input logic. It is an analogue/discrete module with a rated supply voltage of 24V DC, a discrete output current of 1A per point, 2A per group, 2A per module and a maximum power dissipation of 6W. It is furnished with 2 connectors for removable terminal blocks. Analogue input range of this product is ±10V, ±20mA, ±5V, 1V to 5V, 4mA to 20mA and analogue output range is ±10V 12bit and 0mA to 20mA 12bit. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height) and weighs 0.24kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Group Of Channels
  • 1 group of 2 discrete outputs
  • 1 group of 4 discrete inputs
  • 1 group of 4 analog differential inputs
  • 1 group of 2 analog outputs
Range Of Product Modicon Momentum automation platform
Discrete Input Voltage 24 V DC
Analogue Input Range
  • +/- 10 V
  • +/- 20 mA
  • +/- 5 V
  • 1...5 V
  • 4...20 mA
Analogue Input Type differential
Output Overload Protection with discrete output
Product Or Component Type analogue,discrete I/O base
Analogue Input Resolution
  • 12 bits 1...5 V
  • 12 bits 4...20 mA
  • 13 bits +/- 20 mA
  • 13 bits +/- 5 V
  • 14 bits +/- 10 V
Analogue Output Range
  • +/- 10 V 12 bits
  • 0...20 mA 12 bits
Output Short-Circuit Protection with discrete output
Discrete Output Voltage <= 30 V
Warranty 18 months
Electrical Connection 2 connectors for removable terminal blocks
Discrete Output Type transistor
Height 125 mm
Output Load
  • <= 600 Ohm 0...20 mA analogue output
  • >= 3 kOhm +/- 10 V analogue output
Operating Rate
  • 100 cyc/s resistive 1 A discrete output
  • 1000 cyc/h inductive 1 A discrete output
  • 8 cyc/s tungsten <2.4 W discrete output
Discrete Output Logic positive
[Us] Rated Supply Voltage 24 VDC
Conversion Error
  • +/- 0.35 % +/- 10 V 25 °C analogue output
  • 0,0016 4...20 mA 25 °C analogue input circuit
  • 0,003 +/- 20 mA 60 °C analogue input circuit
  • 0,003 +/- 5 V 60 °C analogue input circuit
  • 0,003 1...5 V 60 °C analogue input circuit
  • 0,003 4...20 mA 60 °C analogue input circuit
  • +/- 0.35 % 0...20 mA 25 °C analogue output
  • +/- 0.70 % +/- 10 V 60 °C analogue output
  • +/- 0.70 % 0...20 mA 60 °C analogue output
  • 0,0008 +/- 10 V 25 °C analogue input circuit
  • 0,0015 +/- 10 V 60 °C analogue input circuit
  • 0,0016 +/- 20 mA 25 °C analogue input circuit
  • 0,0016 +/- 5 V 25 °C analogue input circuit
  • 0,0016 1...5 V 25 °C analogue input circuit
Maximum Voltage Drop <0.5 V 1 A at state on discrete output
Conversion Consistency
  • +/- 0.02 % +/- 10 V analogue input circuit
  • +/- 0.04 % +/- 20 mA analogue input circuit
  • +/- 0.04 % +/- 5 V analogue input circuit
  • +/- 0.04 % 1...5 V analogue input circuit
  • +/- 0.04 % 4...20 mA analogue input circuit
Response Time
  • < 0.1 ms from state 0 to state 1 discrete output
  • < 0.1 ms from state 1 to state 0 discrete output
  • 2.2 ms from state 0 to state 1 discrete input
  • 3.3 ms from state 1 to state 0 discrete input
Current Consumption
  • <= 350 mA 24 V DC
  • 200 mA 24 V DC
Current State 1 Guaranteed >= 2.5 mA discrete input)
Marking CE
Input Voltage Limits < 30 V
Discrete Output Current
  • 1 A per point
  • 2 A per group
  • 2 A per module
Net Weight 0.24 kg
Voltage State 0 Guaranteed -3...5 V discrete input
Maximum Leakage Current 1 mA DC 24 V discrete output
Voltage State 1 Guaranteed 11...30 V discrete input
Isolation Voltage
  • 500 V 1 min) between analogue I/O and operating voltage
  • 500 V 1 min) between operating voltage and I/O from ground
Current State 0 Guaranteed <= 1.2 mA discrete input)
Maximum Power Dissipation In W 6 W
Discrete Input Logic positive
Input Overvoltage Protection
  • -50-50 V <= 100 s analogue input circuit
  • -30-30 V 24 V analogue input circuit
Fail State
  • analogue input circuit hold
  • analogue input circuit reset to zero
Input Resistance
  • 1 MOhm analogue input circuit
  • 4 kOhm discrete input
Local Signalling for channel status 8 LEDs
Conversion Time
  • 1 ms analogue output
  • 10 ms analogue input circuit
Common Mode Rejection > 54 dB analogue input circuit
Width 141.5 mm
Depth 47.5 mm
Discrete Input Number 4 IEC 1131-2 Type 1
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1403005EN
Sustainable Offer Status Green Premium product
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1403005EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • UL
  • CSA
  • FM Class 1 Division 2
Ambient Air Temperature For Operation 0-60 °C
Resistance To Electromagnetic Fields 10 V/m 80...1000 MHz IEC 801-3
Ambient Air Temperature For Storage -40-85 °C
Relative Humidity 95-95 % without condensation
Resistance To Electrostatic Discharge
  • 4 kV contact IEC 801-2
  • 8 kV on air IEC 801-2
Protective Treatment TC
Operating Altitude <= 16404.2 ft (5000 m)
