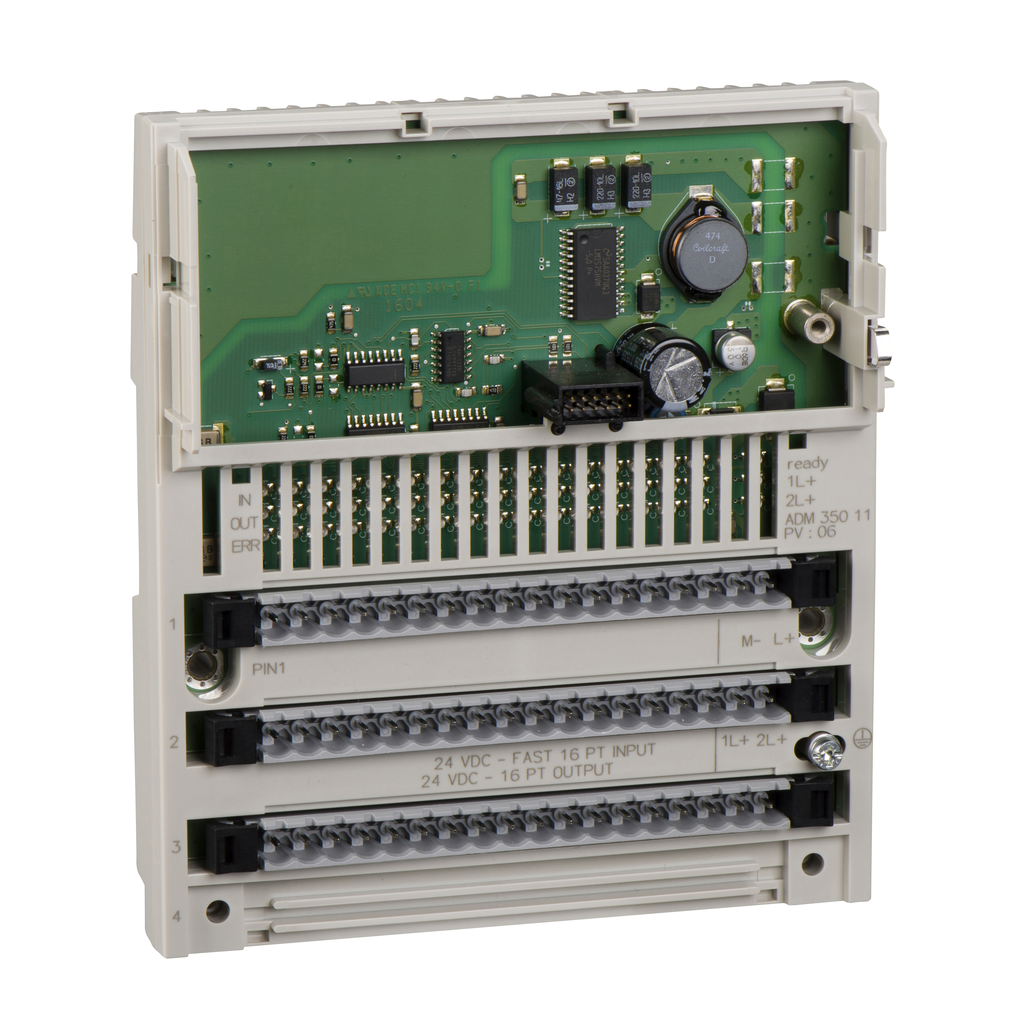

This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete triac I/O base AC module offers 1 group of 10 inputs and 1 group of 8 outputs with positive discrete input logic. It is a module with discrete input voltage of 120V AC and discrete output voltage ranges from 120V DC to 132V DC. There is an isolation between channels and bus at 1780V AC. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.22kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Brand: Schneider Electric
Add to Quote CatalogueDiscrete Output Type | triac |
---|---|
Group Of Channels |
|
Range Of Product | Modicon Momentum automation platform |
Discrete Output Logic | positive |
Discrete Input Voltage | 120 V AC |
Product Or Component Type | discrete triac I/O base AC |
Discrete Output Voltage | 120...132 V DC |
Discrete Output Number | 8 |
Discrete Input Logic | positive |
Discrete Input Number | 10 IEC 1131-2 Type 2 |
Protective Treatment | TC |
Warranty | 18 months |
Network Frequency | 47...63 Hz |
Power Dissipation |
|
Height | 141.5 mm |
Operating Rate | 3000 cyc/h 0.5 A inductive |
Terminals Description Plc N°2 |
|
Terminals Description Plc N°1 |
|
Maximum Voltage Drop | <1.5 V 0.5 A at state 1 output circuit |
Isolation Between Channels And Bus | 1780 V AC |
Current Consumption | 160 mA 120 V AC |
Current State 1 Guaranteed | >= 6 mA |
Marking | CE |
Current State 0 Guaranteed | <= 2.6 mA |
Input Voltage Limits | 74...132 V |
Response Time |
|
Net Weight | 0.22 kg |
Voltage State 0 Guaranteed | < 20 V |
Maximum Leakage Current | 1.3 mA 120 V output circuit) |
Voltage State 1 Guaranteed | > 74 V |
Input Resistance | 4 kOhm |
Protection Type | internal 2 x 2.5 A slow-blow fuses |
Width | 125 mm |
Depth | 47.5 mm |
Discrete Output Current |
|
[Us] Rated Supply Voltage | 120 V AC |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1403005EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1403005EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | 0-60 °C |
Resistance To Electromagnetic Fields | 10 V/m 80...1000 MHz IEC 801-3 |
Ambient Air Temperature For Storage | -40-85 °C |
Relative Humidity | 95-95 % without condensation |
Resistance To Electrostatic Discharge |
|
Operating Altitude | <= 16404.2 ft (5000 m) |
