1009693

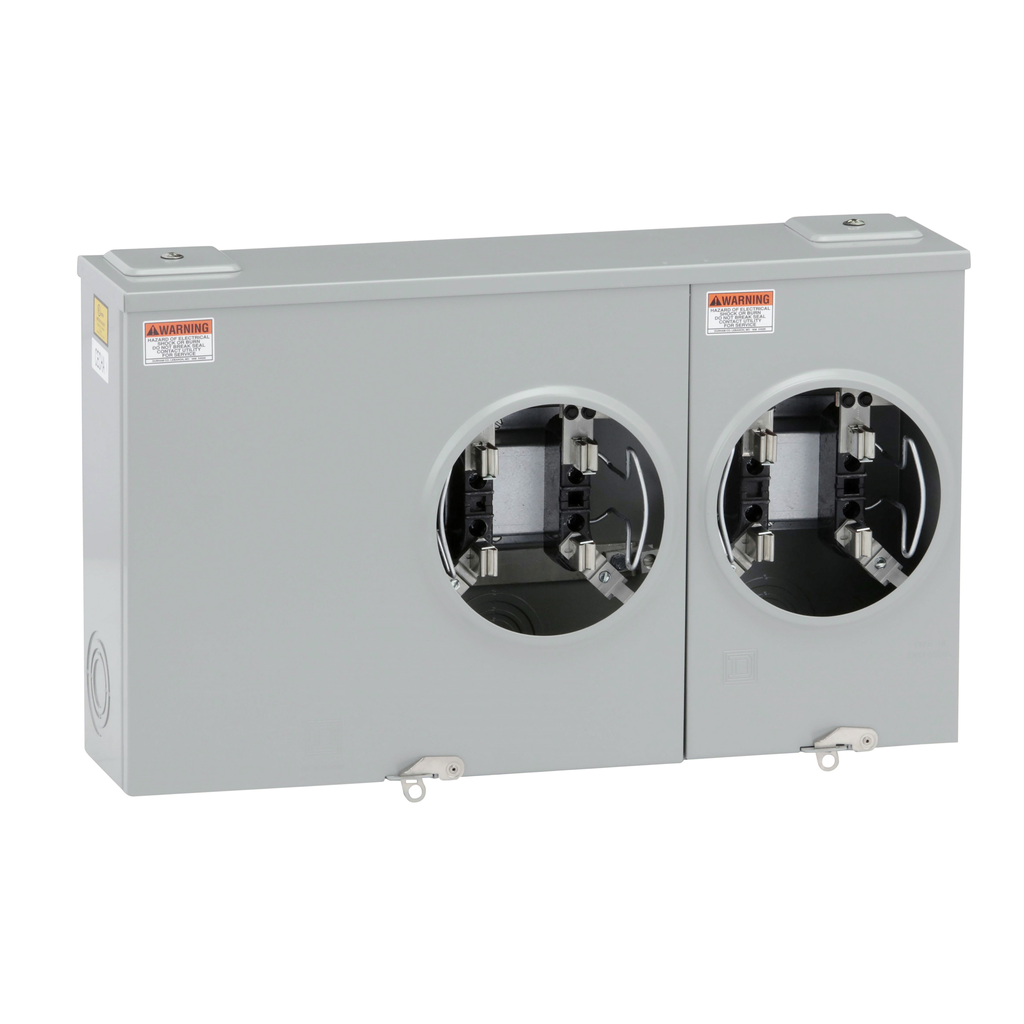

Meter Socket, Ganged, 100 A, 600 V, 1 PH, 3 wire, 2 sockets, 4 jaws, NEMA 3R
Square D Horizontal Ganged Meter Sockets provide 10 kA RMS short circuit protection. These meter sockets are UL Listed and with a NEMA 3R enclosure. Each unit is supplied with ground lugs and a hub opening in the top end wall. This specific meter socket is rated at 100 A, 600 V, and 1 PH. This system is configured with 3 wire, 2 sockets, and 4 jaws.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Ue] Rated Operational Voltage | 600 V AC |
|---|---|
| Number Of Meter Sockets | 2 |
| Line Rated Current | 100 A |
| Product Or Component Type | Meter Socket |
| Phase | 1 phase |
| Warranty | 18 months |
| Product Certifications | UL Listed |
| Service Feed Location |
|
| Hub Type | A ACP closing plate |
| Nema Degree Of Protection | NEMA 3R |
| Bypass Type | no bypass |
| Meter Socket Type | ringless |
| Wiring Configuration | 3-wire |
| Awg Gauge |
|
| Number Of Jaws | 4 without jaw release |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
