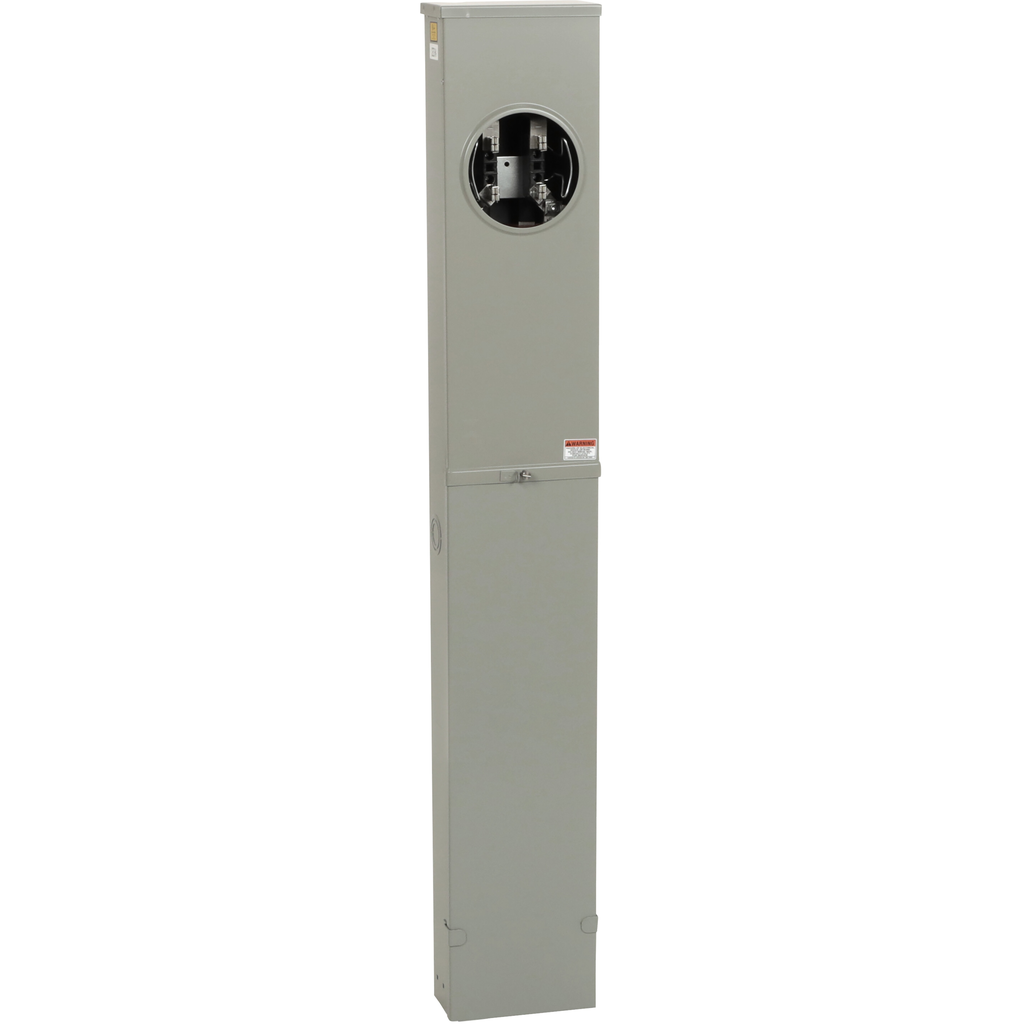

Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. With 200 A, 600 V, 1 phase, 4 jaws ringless socket your product can provide 10 kA RMS short circuit rating. These units are supplied with a bonded neutral to the NEMA 3R enclosure. Meter sockets are UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueHub Type | A ACP closing plate |
---|---|
Meter Socket Type | ringless |
Product Or Component Type | Meter Socket |
Warranty | 18 months |
Service Feed Location | UG |
Meter Socket Rated Current | 200 A |
[Ue] Rated Operational Voltage | 600 V AC |
Bypass Type | no bypass |
Enclosure Material | steel |
Awg Gauge |
|
Wiring Configuration | 3-wire |
Electrical Connection | lugs 0.5" hex |
Number Of Jaws | 4 without jaw release |
Phase | 1 phase |
Eu Rohs Directive | Under investigation |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
Nema Degree Of Protection | NEMA 3R |
