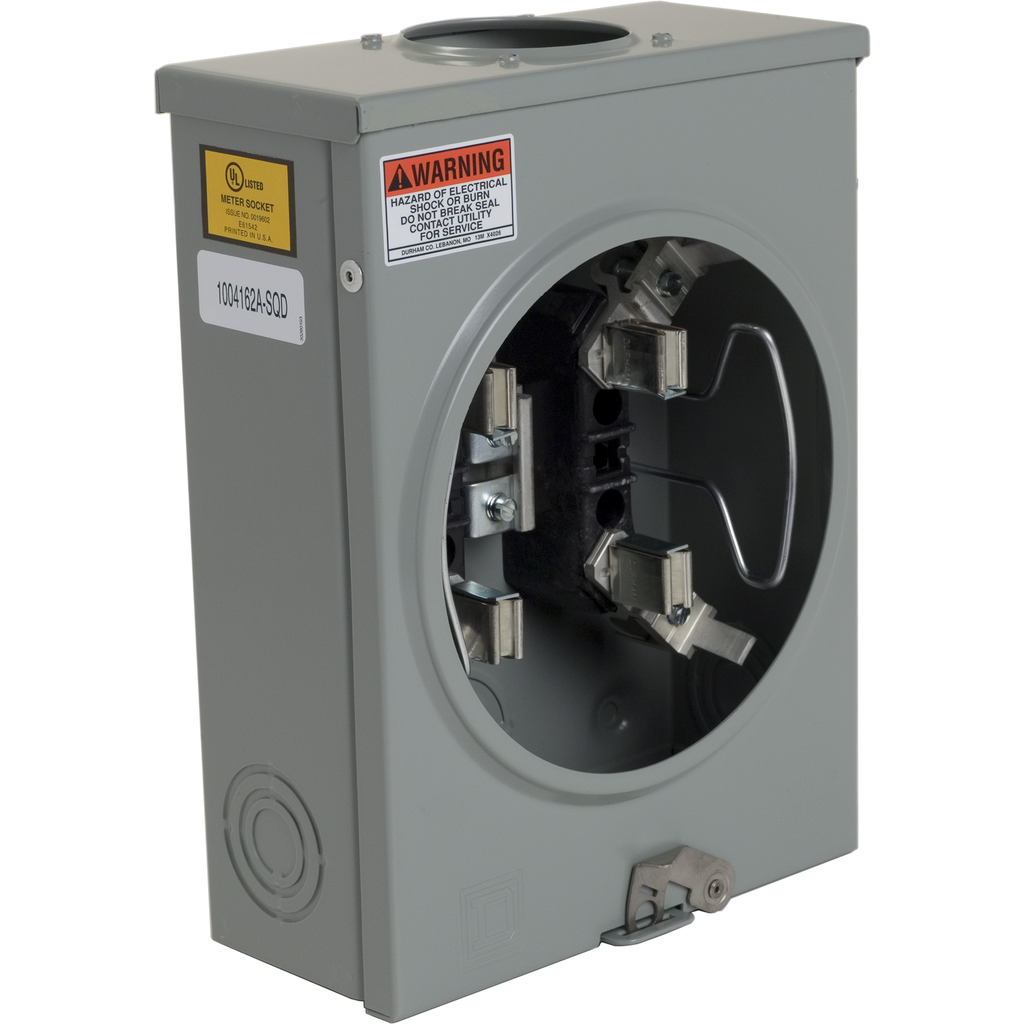

1004162A
Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A, no bypass, no jaw release
Specifications
| Hub Type | A ACP closing plate |
|---|---|
| Meter Socket Type | ringless |
| Product Or Component Type | Meter Socket |
| Warranty | 18 months |
| Service Feed Location |
|
| Meter Socket Rated Current | 100 A |
| Device Mounting | surface |
| [Ue] Rated Operational Voltage | <= 600 V AC |
| Bypass Type | no bypass |
| Enclosure Material | steel |
| Awg Gauge |
|
| Wiring Configuration | 3-wire |
| Electrical Connection | lugs slotted |
| Number Of Jaws | 4 without jaw release |
| Phase | 1 phase |
| Box Number | 1R |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 3R |
