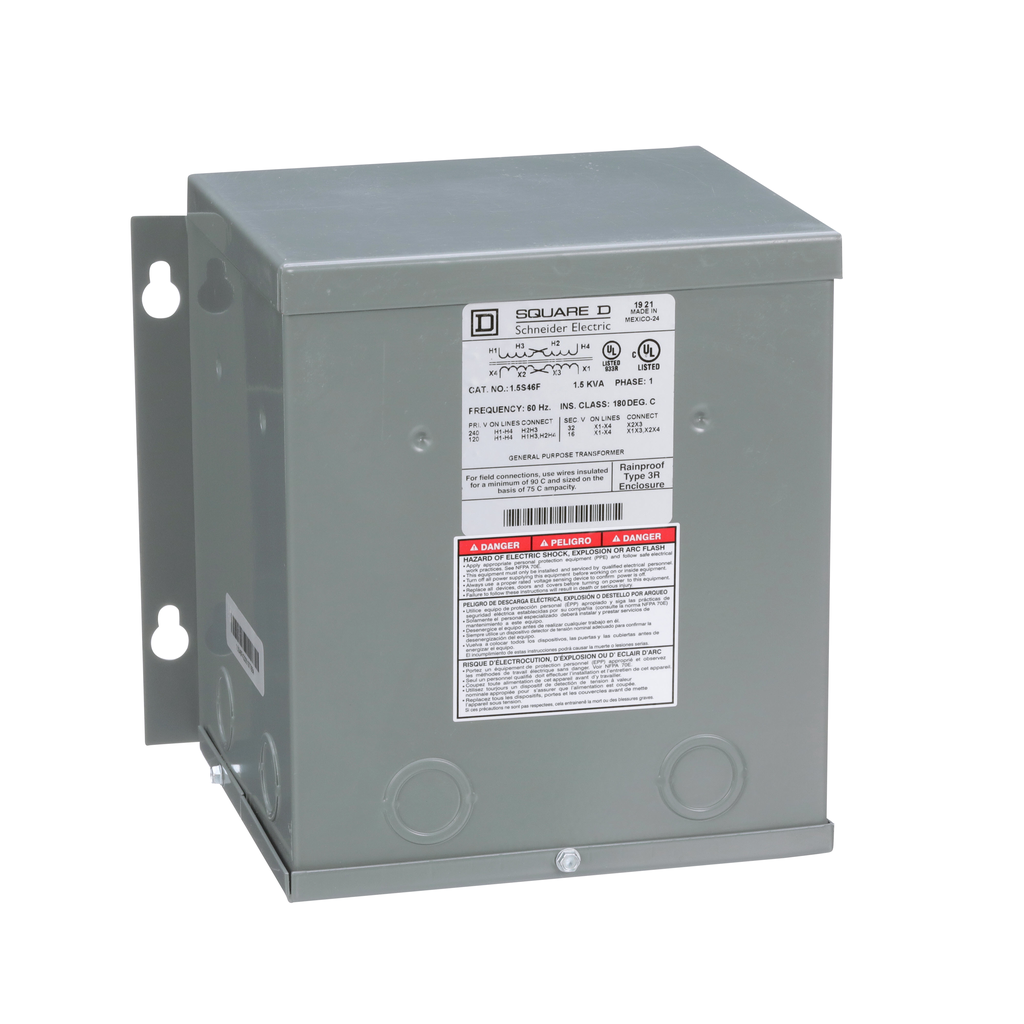

1.5S46F – Transformer, buck boost, encapsulated, 1.5kVA, 1 phase, 120x240V primary, 16/32V secondary, NEMA 3R, 115C rise
1.5S46F
Transformer, buck boost, encapsulated, 1.5kVA, 1 phase, 120x240V primary, 16/32V secondary, NEMA 3R, 115C rise

A Buck and Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck and Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed (UL 506). Autotransformers can carry loads in excess of their nameplate rating. This Buck and Boost Transformer has a NEMA 3R rating, has a 120 x 240V primary voltage, and a 16/32V secondary voltage. This transformer has a rated power of 1.5KVA. This transformer has a temperature rise of 115 °C. This product has a UL listed, cULus & CSA certifications.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1407010
Sustainable Offer Status Green Premium product
Pvc Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile N/A
Eu Rohs Directive Compliant
Country of Origin United States
Primary Voltage 120 x 240 V
Secondary Voltage 16/32 V
Temperature Rise 115 °C
Product Or Component Type Buck and Boost Transformer
Rated Power In Va 1.5 kVA
Nema Degree Of Protection NEMA 3R
Box Number 8A
Insulation Temperature 180 °C
Warranty 18 months
