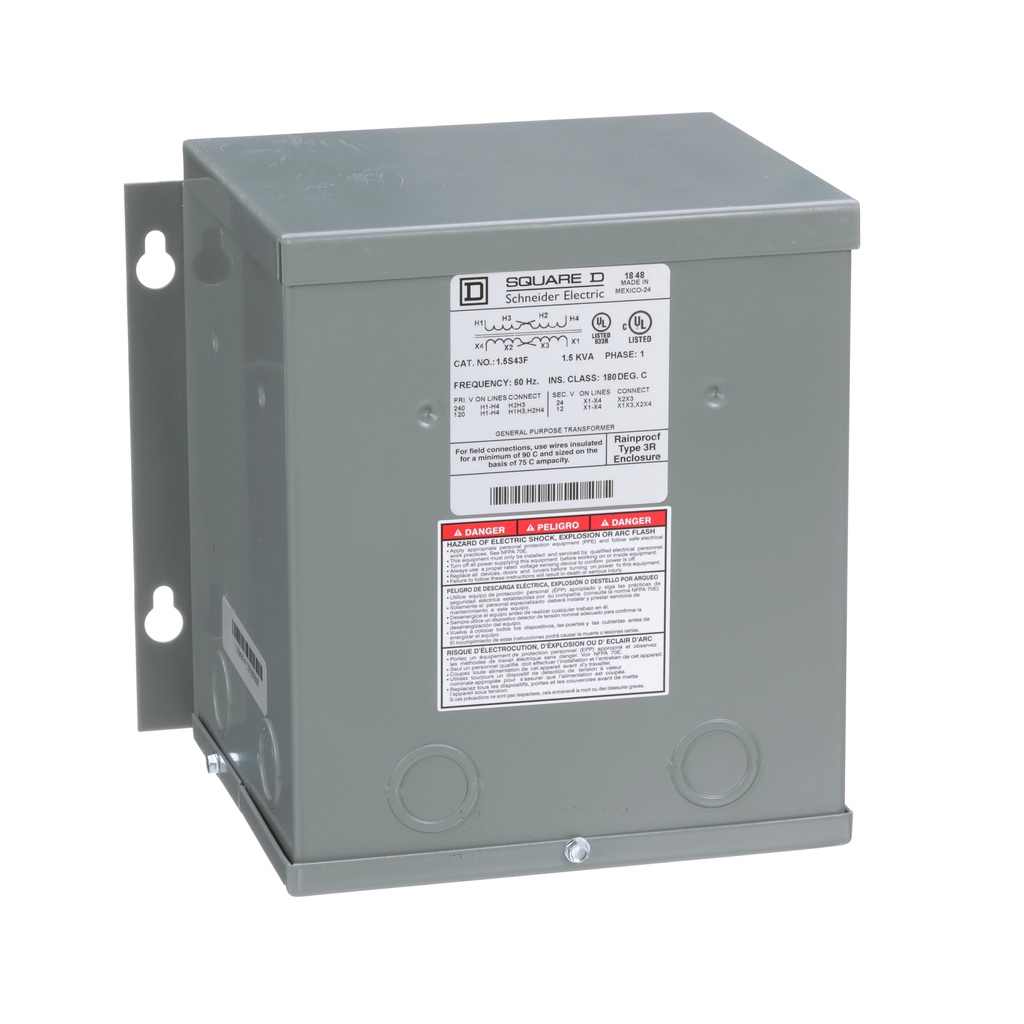

Transformer, buck boost, encapsulated, 1.5kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise
A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed (UL 506). Autotransformers can carry loads in excess of their nameplate rating. This Buck and Boost Transformer has a NEMA 3R rating, and a 120 x 240V, 12/24V primary voltage. This trandformer has a rated power of 1.5KVA. This transformer has a temperature rise of 115 °C. This product has a UL listed, cULus & CSA certifications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Primary Voltage | 120 x 240 V |
|---|---|
| Nema Degree Of Protection | NEMA 3R |
| Secondary Voltage | 12/24 V |
| Temperature Rise | 115 °C |
| Product Or Component Type | Buck and Boost Transformer |
| Rated Power In Va | 1.5 kVA |
| Box Number | 8A |
| Insulation Temperature | 180 °C |
| Warranty | 18 months |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407010 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
