F22023

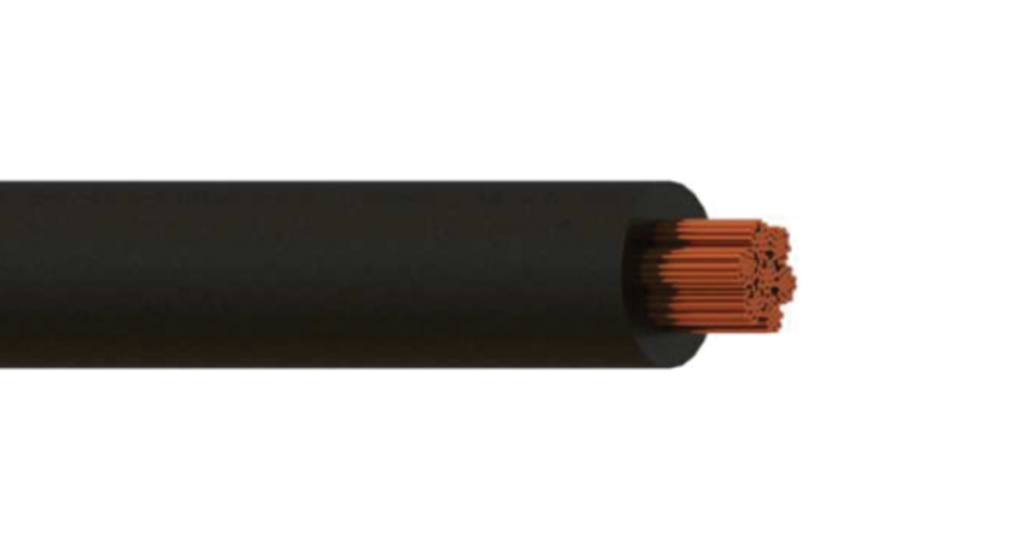

Flexible Hook-up and Appliance Wire
105°C Dry. 75°C Moisture Resistant. 600/1000 Volts. Flexible Stranded Copper Conductor. PVC Insulation.
CONSTRUCTION:
- Conductors: Flexible stranded bare copper; See Table 1 for Stranding Details
- Insulation: Polyvinyl Chloride (PVC)
- Colors: All Colors available; Stripes available upon request in 4/0 AWG and smaller sizes.
APPLICATIONS AND FEATURES:
- For use in internal wiring of electrical equipment, control panels, appliances, and grounding for use on industrial plan floor.
- For use as permitted in NEC Article 310 and NFPA #79. For use in boat wiring in accordance with 33 CFR 183.425 – 435.
Brand: Southwire
Add to Quote Download Spec Sheet PDFSpecifications
| Stock Code | |
|---|---|
| Cond. Size (AWG/Kcmil) | |
| Number of Strands | |
| Nominal Insulation Thickness (inches) | |
| Nominal OD (inches) | |
| Nominal Weight (Lbs/Mft) | |
| Standards & References |
ASTM B3 Voltage: 600V, AWM 10269 - 1000V UL 83 - Type THHW; 90°C Dry, 75°C Wet UL 1063 - Machine Tool Wiring (MTW); 90°C Dry, 60°C Wet/Oil UL 1426 - BC-5W2; Sizes - 16 to 4/0 AWG; 105°C Dry, 75°C Wet CSA C22.2 No. 127 - Type TEW; Sizes 22 - 4/0 awg; 105°C Dry CSA C22.2 No. 210 - AWM I A/B; 105°C Dry Oil Res I Sun Res - 8 AWG & larger sizes For CT Use - 1/0 AWG & larger sizes RoHS-2 Compliant |
