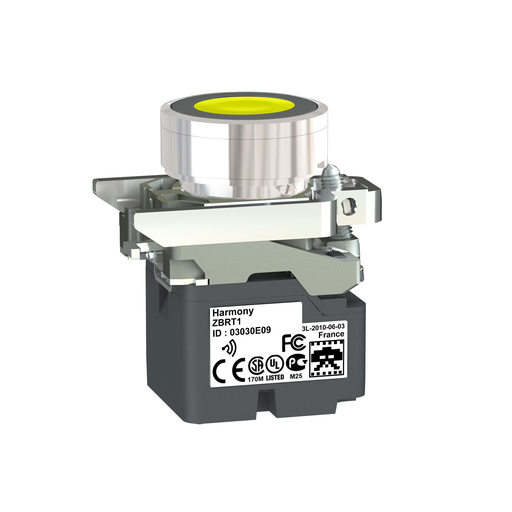

Part Number | ZB4RTA5 |
---|---|
Country of Origin | FR |
UPC | 785901705802 |
UPC11 | 78590170580 |
EAN | 3606480334542 |
Availability | N |
Lead Time | 23 |
UNSPSC | 39122216 |
HTs Code | 8517620090 |
Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Discount Schedule | I |
Return Indicator | No |
Weight | 0.10 pound |
Range Of Product | Harmony XB5 |
---|---|
Product Or Component Type | Wireless and batteryless transmitter |
Device Short Name | XB5R |
Bezel Material | Chromium plated metal |
Fixing Collar Material | Zamak |
Mounting Diameter | 0.87 in (22 mm) |
Transmission Frequency | 2405 MHz |
Emission Class | 5M00G7W |
Antenna Type | Omnidirectional |
Shape Of Signaling Unit Head | Round |
Type Of Operator | spring return push-button with transmitter |
Operator Profile | Yellow flush |
Max Power Consumption In W | 1 mW |
Number Of Channels | 1 |
Modulation Technique | O-QPSK |
Bandwidth | 5 MHz |
Antenna Gain | 0 dBi |
Embedding Depth | 1.65 in (42 mm) |
Cad Overall Height | 1.63 in (41.5 mm) |
Cad Overall Width | 1.18 in (30 mm) |
Cad Overall Depth | 1.69 in (43 mm) |
Product Weight | 0.10 lb(US) (0.045 kg) |
Operating Travel | 0.17 in (4.3 mm) total travel) |
Operating Force | 25 N C/O changing electrical state |
Mechanical Robustness | Free fall resistance 1000 mm EN/IEC 60068-2-32 |
Standards | EN/IEC 60947-1 CSA C22.2 No 14 UL 508 EN/IEC 60947-5-1 |
Radio Agreement | ANATEL ARIB T66 FCC ICASA RSS SRRC |
Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
Maximum Sensing Distance | 328.08 ft (100 m) in free field 82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure 984.25 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
Acquisition Time | 2 ms |
Response Time | < 2 ms |
Emission Power | 3 mW |
Fixing Mode | Fixing screw beneath head 7.08…10.62 lbf.in (0.8…1.2 N.m) |
Electrical Composition Code | PW1 |
Protective Treatment | TH |
Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temp For Op | -13…131 °F (-25…55 °C) |
Relative Humidity | 95 % 158 °F (70 °C) without condensation |
IP Degree Of Protection | IP65 IEC 60529 front face) IP30 IEC 60529 back face) IP65 UL Type 12 front face) |
IK Degree Of Protection | IK03 IEC 50102 |
Mechanical Durability | 1000000 cycles |
Shock Resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Vibration Resistance | 5 gn 11…500 Hz)IEC 60068-2-6 +/- 10 mm 2…11 Hz)IEC 60068-2-6 |
Electromagnetic Compatibility | Electrostatic discharge immunity test 8 kV in free air (in insulating parts)) Electrostatic discharge immunity test 6 kV on contact (on metal parts)) Susceptibility to electromagnetic fields 10 V/m 80...2000 MHz) Susceptibility to electromagnetic fields 3 V/m 80...2700 MHz, distance = 20 m) Immunity for industrial environments Radiated emission |
Product Certifications | UL CSA CCC C-tick GOST BT 2006/95/EC |
Directives | 1999/5/EC - R&TTE directive 2004/108/EC - electromagnetic compatibility |
Category | 22470 - XB5R WIRELESS PUSH BUTTON |
Discount Schedule | I |
GTIN | 00785901705802 |
Nbr. Of Units In Pkg. | 1 |
