| Range Of Product |

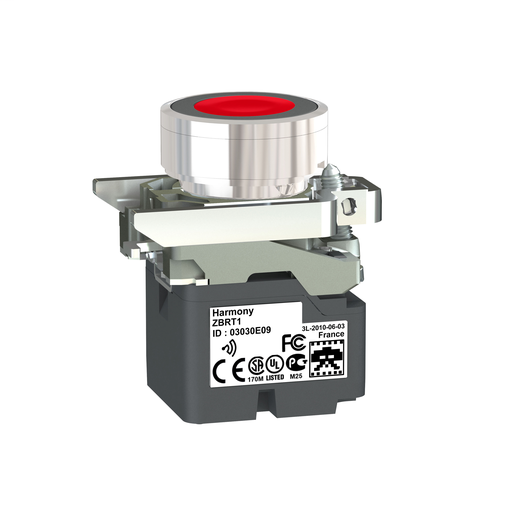

Harmony XB5 |
| Product Or Component Type |
Wireless and batteryless transmitter |
| Device Short Name |
XB5R |
| Bezel Material |
Chromium plated metal |
| Fixing Collar Material |
Zamak |
| Mounting Diameter |
0.87 in (22 mm) |
| Transmission Frequency |
2405 MHz |
| Emission Class |
5M00G7W |
| Antenna Type |
Omnidirectional |
| Shape Of Signaling Unit Head |
Round |
| Type Of Operator |
spring return push-button with transmitter |
| Operator Profile |
Red flush |
| Max Power Consumption In W |
1 mW |
| Number Of Channels |
1 |
| Modulation Technique |
O-QPSK |
| Bandwidth |
5 MHz |
| Antenna Gain |
0 dBi |
| Embedding Depth |
1.65 in (42 mm) |
| Cad Overall Height |
1.63 in (41.5 mm) |
| Cad Overall Width |
1.18 in (30 mm) |
| Cad Overall Depth |
1.69 in (43 mm) |
| Product Weight |
0.10 lb(US) (0.045 kg) |
| Operating Travel |
0.17 in (4.3 mm) total travel) |
| Operating Force |
25 N C/O changing electrical state |
| Mechanical Robustness |
Free fall resistance 1000 mm EN/IEC 60068-2-32 |
| Standards |
UL 508
EN/IEC 60947-5-1
EN/IEC 60947-1
CSA C22.2 No 14 |
| Radio Agreement |
ANATEL
ARIB T66
FCC
ICASA
RSS
SRRC |
| Communication Port Protocol |
Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Maximum Sensing Distance |
328.08 ft (100 m) in free field
82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure
984.25 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Acquisition Time |
2 ms |
| Response Time |
< 2 ms |
| Emission Power |
3 mW |
| Fixing Mode |
Fixing screw beneath head 7.08…10.62 lbf.in (0.8…1.2 N.m) |
| Electrical Composition Code |
PW1 |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-13…131 °F (-25…55 °C) |
| Relative Humidity |
95 % 158 °F (70 °C) without condensation |
| IP Degree Of Protection |
IP65 IEC 60529 front face)
IP30 IEC 60529 back face)
IP65 UL Type 12 front face) |
| IK Degree Of Protection |
IK03 IEC 50102 |
| Mechanical Durability |
1000000 cycles |
| Shock Resistance |
25 gn 6 ms) 6000 shocks IEC 60068-2-27
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance |
5 gn 11…500 Hz)IEC 60068-2-6
+/- 10 mm 2…11 Hz)IEC 60068-2-6 |
| Electromagnetic Compatibility |
Electrostatic discharge immunity test 8 kV in free air (in insulating parts))
Electrostatic discharge immunity test 6 kV on contact (on metal parts))
Susceptibility to electromagnetic fields 10 V/m 80...2000 MHz)
Susceptibility to electromagnetic fields 3 V/m 80...2700 MHz, distance = 20 m)
Immunity for industrial environments
Radiated emission |
| Product Certifications |
C-tick
GOST
BT 2006/95/EC
UL
CSA
CCC |
| Directives |
2004/108/EC - electromagnetic compatibility
1999/5/EC - R&TTE directive |
| Category |
22470 - XB5R WIRELESS PUSH BUTTON |
| Discount Schedule |
I |
| GTIN |
00785901705376 |
| Nbr. Of Units In Pkg. |
1 |
