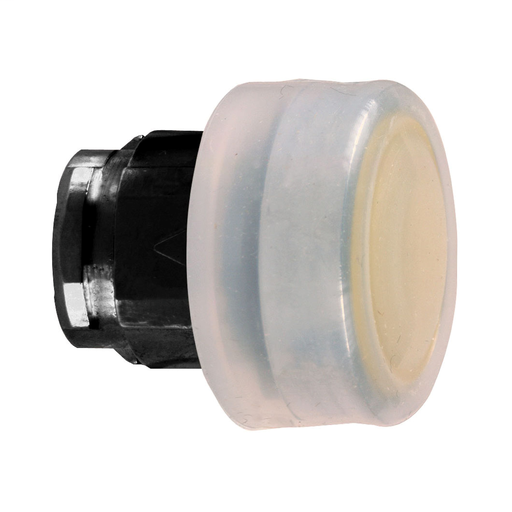

Yellow projecting pushbutton head Ø22 spring return unmarked
ZB4BP57
Yellow projecting pushbutton head Ø22 spring return unmarked

This Harmony XB4, clear silicone membrane booted projecting yellow button head operates with a spring return / impulse mechanism. This clear silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments.

Add to Quote Catalogue
Specifications
Part Number ZB4BP57
UPC 389110223422
UPC11 38911022342
EAN 3389110223422
Characteristics
Range Of Product Harmony XB4
Product Or Component Type Head for non-illuminated push-button
Device Short Name ZB4
Product Compatibility not compatible with legend holder
Bezel Material Black metal
Mounting Diameter 0.87 in (22 mm)
Sale Per Indivisible Qty 1
Shape Of Signaling Unit Head Round
Type Of Operator spring return
Operator Profile Yellow projecting, unmarked
Operator Add Information Clear boot
Cad Overall Width 1.18 in (30 mm)
Cad Overall Height 1.18 in (30 mm)
Cad Overall Depth 1.38 in (35 mm)
Mechanical Durability 10000000 cycles
Electrical Composition Code C1 9 single front mounting C2 9 single and double front mounting C11 3 single front mounting C15 1 single front mounting
Device Presentation Basic element
Protective Treatment TH
Ambient Air Temp For Storage -40…158 °F (-40…70 °C)
Ambient Air Temp For Op -40…158 °F (-40…70 °C)
Overvoltage Category Class I IEC 60536
IP Degree Of Protection IP66 IEC 60529 IP67
Nema Degree Of Protection NEMA 13 NEMA 4X
IK Degree Of Protection IK06 IEC 50102
Standards EN/IEC 60947-5-4 EN/IEC 60947-5-5 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-1 JIS C8201-5-1 UL 508 JIS C8201-1
Product Certifications UL Listed CSA RINA GL BV LROS (Lloyds register of shipping) DNV
Vibration Resistance 5 gn 2…500 Hz)IEC 60068-2-6
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
GTIN 03389110223422
Warranty 18 months
