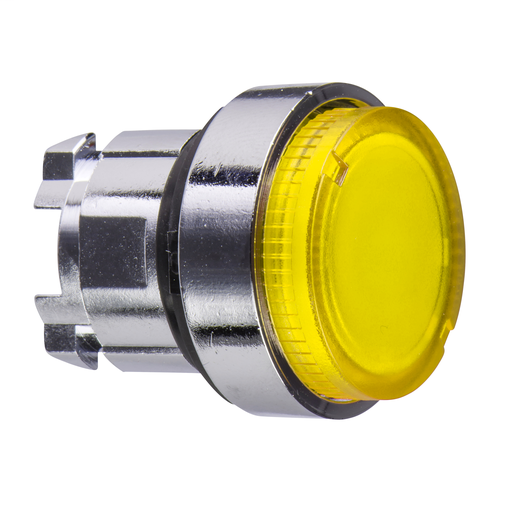

Yellow projecting illuminated pushbutton head Ø22 spring return for integral LED
ZB4BW183
Yellow projecting illuminated pushbutton head Ø22 spring return for integral LED

This Harmony XB4, plain lens illuminated projecting yellow button head operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.

Add to Quote Catalogue
Specifications
Part Number ZB4BW183
UPC 606481206343
UPC11 60648120634
EAN 3606481206343
RoHS Compliant Yes
Weight 0.06 pound
Characteristics
Range Of Product Harmony XB4
Product Or Component Type Head for illuminated push-button
Device Short Name ZB4
Product Compatibility Integral LED
Bezel Material Chromium plated metal
Mounting Diameter 0.87 in (22 mm)
Sale Per Indivisible Qty 1
Shape Of Signaling Unit Head Round
Type Of Operator spring return
Operator Profile Yellow projecting, unmarked
Operator Add Information With plain lens
Cad Overall Width 1.14 in (29 mm)
Cad Overall Height 1.14 in (29 mm)
Cad Overall Depth 1.30 in (33 mm)
Product Weight 0.06 lb(US) (0.029 kg)
Resistance High Press Washer 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical Durability 10000000 cycles
Electrical Composition Code M1 6 single front mounting integral LED M2 6 single and double front mounting integral LED M6 2 single front mounting integral LED and transformer M10 2 single front mounting integral LED
Device Presentation Basic sub-assemblies
Protective Treatment TH
Ambient Air Temp For Storage -40…158 °F (-40…70 °C)
Ambient Air Temp For Op -40…158 °F (-40…70 °C)
Overvoltage Category Class I IEC 60536
IP Degree Of Protection IP66 IEC 60529 IP69 IP69K
Nema Degree Of Protection NEMA 13 NEMA 4X
IK Degree Of Protection IK06 EN 50102
Standards JIS C8201-5-1 UL 508 EN/IEC 60947-5-5 CSA C22.2 No 14 EN/IEC 60947-5-4 EN/IEC 60947-1 EN/IEC 60947-5-1 JIS C8201-1
Product Certifications DNV LROS (Lloyds register of shipping) CSA RINA GL BV UL Listed
Vibration Resistance 5 gn 2…500 Hz)IEC 60068-2-6
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
GTIN 03606481206343
Nbr. Of Units In Pkg. 1
Green Premium Status Green Premium product
REACh Free Of SVHC Yes
EU RoHs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Toxic Heavy Metal Free Yes
Mercury Free Yes
