ZB5AW183SC1

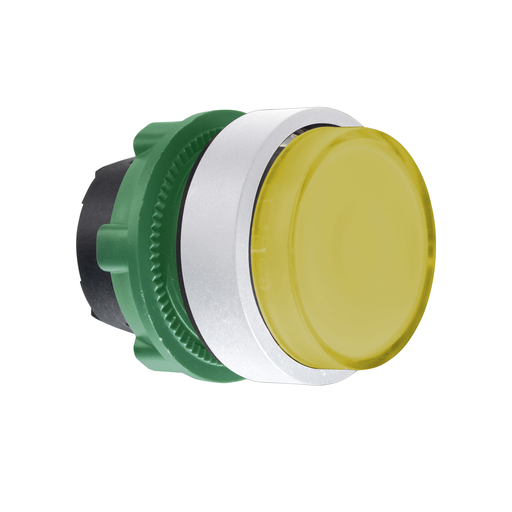

Yellow projecting illum pushbutton head for integral cp white
This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | ZB5AW183SC1 |
|---|---|
| EAN | 3606489769819 |
| Availability | N |
| Lead Time | 20 |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Weight | 0.04 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Head for illuminated push-button |
| Device Short Name | ZB5 |
| Product Compatibility | Integral LED |
| Bezel Material | Plastic colour plated white |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Operator Profile | Yellow projecting, unmarked |
| Operator Add Information | With grooved lens |
| Environmental Characteristic | High ambient lighting environment |
| Cad Overall Width | 1.14 in (29 mm) |
| Cad Overall Height | 1.14 in (29 mm) |
| Cad Overall Depth | 1.30 in (33 mm) |
| Product Weight | 0.04 lb(US) (0.017 kg) |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical Durability | 10000000 cycles |
| Main Group | Illum push-button |
| Group Of Product | Proj push with inser of legend |
| Station Name | XALD 1...5 cut-outs XALK 2...5 cut-outs |
| Cap/Operator Or Lens Colour | Yellow |
| Marking | Unmarked |
| Electrical Composition Code | M1 6 single front mounting integral LED M2 6 single and double front mounting integral LED M6 2 single front mounting integral LED and transformer M10 2 single front mounting integral LED MF1 2 single front mounting integral LED MR1 2 single rear mounting integral LED |
| Device Presentation | Basic sub-assemblies |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Overvoltage Category | Class II IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| IK Degree Of Protection | IK05 EN 50102 |
| Standards | EN/IEC 60947-5-4 JIS C8201-5-1 UL 508 GB 14048.5 EN/IEC 60947-1 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1 |
| Product Certifications | GL UL Listed RINA LROS (Lloyds register of shipping) CSA BV DNV |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
