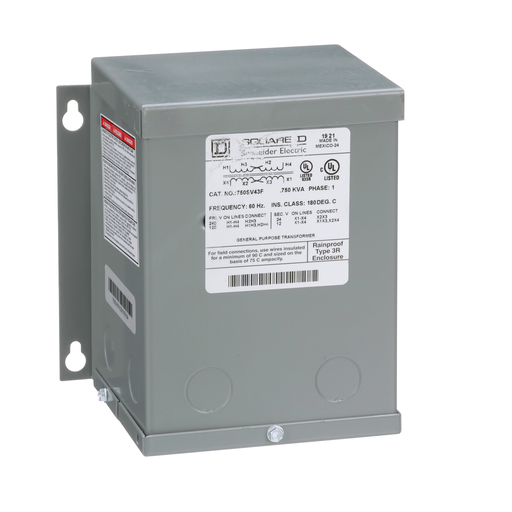

XFMR DRY 1PH .75KVA 120X240V-12/24V
A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed (UL 506). Autotransformers can carry loads in excess of their nameplate rating. This Buck and Boost Transformer has a NEMA 3R rating, has a 120 x 240V primary voltage, and a 12/24V secondary voltage. This trandformer has a rated power of 0.75KVA. This transformer has a temperature rise of 115 °C. This product has a UL listed, cULus & CSA certifications.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 750SV43F |
|---|---|
| Country of Origin | MX |
| UPC | 785901019930 |
| UPC11 | 78590101993 |
| EAN | 0785901019930 |
| Availability | S |
| Lead Time | 10 |
| UNSPSC | 39121025 |
| HTs Code | 8504314065 |
| Prop 65 | This product can expose you to chemicals including: Phenyl glycidyl ether which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | PE2 |
| Return Indicator | Yes |
Characteristics
| Product | Buck and Boost Transformer |
|---|---|
| Enclosure Code | 6A |
| Enclosure Type | NEMA 3R |
| Insulation Temperature | 356 °F (180 °C) |
| Primary Voltage | 120 x 240 V |
| Power Rating | 0.75 kVA |
| Secondary Voltage | 12/24 V |
| Temperature Rise | 115 °C |
| Category | 16265 - BUCK & BOOST |
| Discount Schedule | PE2 |
| GTIN | 00785901019930 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Warranty | 18 months |
