ZB5AA71115

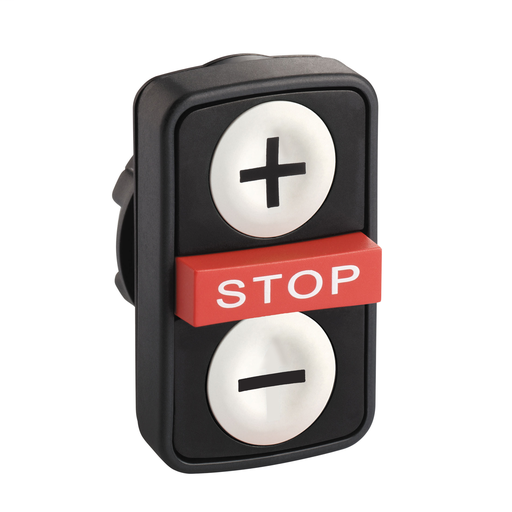

White flush/red projecting/white flush triple-headed pushbutton Ø22 with marking
This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out, it has 1 red and 2 white buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | ZB5AA71115 |
|---|---|
| Country of Origin | FR |
| UPC | 389119043465 |
| UPC11 | 38911904346 |
| EAN | 3389119043465 |
| Availability | N |
| Lead Time | 18 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | No |
| Weight | 0.05 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Head for triple-headed push-button |
| Device Short Name | XB5 |
| Bezel Material | Dark grey plastic |
| Mounting Diameter | 0.87 in (22 mm) |
| Head Type | Standard |
| Shape Of Signaling Unit Head | Rectangular |
| Type Of Operator | spring return |
| Operator Profile | 2 flush - 1 central projecting STOP push-buttons |
| Operators Description | White ''+'' - white ''-'' - red ''STOP'' |
| Cad Overall Width | 1.18 in (30 mm) |
| Cad Overall Height | 1.97 in (50 mm) |
| Cad Overall Depth | 1.38 in (35 mm) |
| Product Weight | 0.05 lb(US) (0.023 kg) |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Colour Of Marking | White marking when green, red or black caps Black marking when white caps |
| Operator Profile | Red projecting, STOP white) White flush, - black) White flush, + black) |
| Mechanical Durability | 1000000 cycles |
| Station Name | XALD 1 cut-out |
| Electrical Composition Code | C1 9 single front mounting C2 9 single and double front mounting C11 3 single front mounting SF1 3 single front mounting SR1 3 single rear mounting |
| Device Presentation | Basic element |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Electrical Shock Protect Class | Class II IEC 61140 |
| IP Degree Of Protection | IP67 IEC 60529 IP69 IEC 60529 IP69K |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| IK Degree Of Protection | IK05 IEC 50102 |
| Standards | JIS C8201-5-1 EN/IEC 60947-5-4 EN/IEC 60947-1 UL 508 CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-1 |
| Product Certifications | UL Listed DNV GL LROS (Lloyds register of shipping) RINA BV CSA |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW |
| Discount Schedule | CS2 |
| GTIN | 03389119043465 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
