XB4BA711137

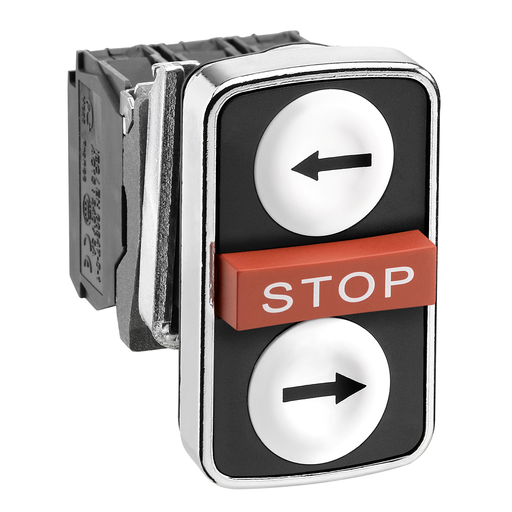

White flush/red projecting/white flush triple-headed pushbutton Ø22 1NO+1NC+1NO
This Harmony XB4 triple-headed modular push button has 1 white, 1 red, and 1 black buttons, operates witha spring return / impulse mechanism. It has a metal bezel. This 3-headed push button provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | XB4BA711137 |
|---|---|
| UPC | 389119043595 |
| UPC11 | 38911904359 |
| EAN | 3389119043595 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Weight | 0.28 pound |
Characteristics
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Triple-headed push-button |
| Device Short Name | XB4 |
| Bezel Material | Chromium plated metal |
| Fixing Collar Material | Zamak |
| Head Type | Standard |
| Mounting Diameter | 0.87 in (22 mm) |
| Shape Of Signaling Unit Head | Rectangular |
| Type Of Operator | spring return |
| Operator Profile | 2 flush - 1 central projecting STOP push-buttons |
| Operators Description | White ''right arrow'' - white ''left arrow'' - red ''STOP'' |
| Contacts Type And Composition | 1 NO + 1 NC |
| Contact Operation | Slow-break |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 Spring terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Spring terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 |
| Product Weight | 0.28 lb(US) (0.128 kg) |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Colour Of Marking | White marking when green, red or black caps Black marking when white caps |
| Operator Profile | Red projecting, STOP white) White flush, left arrow black) White flush, right arrow black) |
| Contacts Usage | Standard contacts |
| Positive Opening | With EN/IEC 60947-5-1 appendix K |
| Operating Travel | 0.06 in (1.5 mm) NC changing electrical state) 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel) |
| Operating Force | 3.5 N NC changing electrical state 3.8 N NO changing electrical state |
| Mechanical Durability | 1000000 cycles |
| Tightening Torque | 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape Of Screw Head | Cross JIS No 1 Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts Material | Silver alloy (Ag/Ni) |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt | 10 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage | 6 kV EN 60947-1 |
| Ie Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical Reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Device Presentation | Complete product |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Electrical Shock Protect Class | Class I IEC 61140 |
| IP Degree Of Protection | IP69K IEC 60529 IP69 IEC 60529 |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| IK Degree Of Protection | IK06 IEC 50102 |
| Standards | JIS C8201-5-1 EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60947-5-5 EN/IEC 60947-5-4 UL 508 CSA C22.2 No 14 JIS C8201-1 |
| Product Certifications | CSA RINA LROS (Lloyds register of shipping) BV DNV UL Listed GL |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| GTIN | 03389119043595 |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
