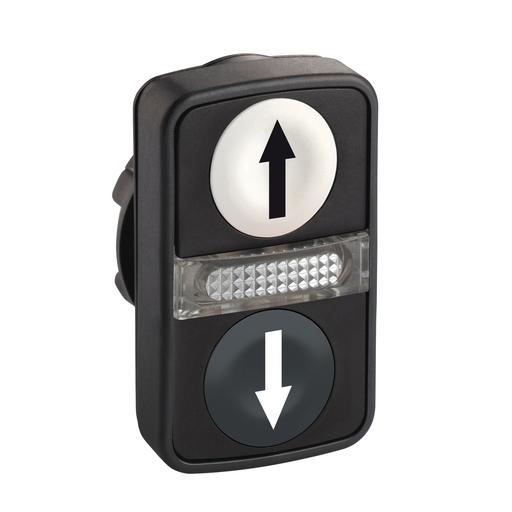

White flush/black flush illuminated double-headed pushbutton Ø22 with marking
This Harmony XB5, double head has 1 white, 1 black button and 1 central white pilot light, operates with a spring return / impulse mechanism. It is marked with “up arrow” / “down arrow” symbols. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks its pilot light, clear colors and by touch due to flush elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Add to Quote CatalogueSpecifications
| Part Number | ZB5AW7A1724 |
|---|---|
| Country of Origin | FR |
| UPC | 389119603478 |
| UPC11 | 38911960347 |
| EAN | 3389119603478 |
| Availability | N |
| Lead Time | 18 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | No |
| Weight | 0.05 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Head for illuminated double-headed push-button |
| Product Compatibility | Integral LED |
| Device Short Name | ZB5 |
| Bezel Material | Dark grey plastic |
| Head Type | Standard |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Rectangular |
| Type Of Operator | spring return |
| Operator Profile | 2 flush push-buttons - 1 central pilot light |
| Operators Description | White ''up arrow'' - black ''down arrow'' |
| Cad Overall Width | 1.18 in (30 mm) |
| Cad Overall Height | 1.97 in (50 mm) |
| Cad Overall Depth | 1.18 in (30 mm) |
| Product Weight | 0.05 lb(US) (0.023 kg) |
| Colour Of Marking | Black marking when white caps |
| Operator Profile | White flush, up arrow black) Black flush, down arrow white) |
| Mechanical Durability | 1000000 cycles |
| Station Name | XALD 1 cut-out |
| Device Presentation | Basic sub-assemblies |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Electrical Shock Protect Class | Class II IEC 60536 |
| IP Degree Of Protection | IP66 IP67 IP69 IP69K |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK Degree Of Protection | IK05 IEC 50102 |
| Standards | EN/IEC 60947-1 UL 508 JIS C8201-5-1 EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-1 |
| Product Certifications | BV CSA DNV GL RINA UL Listed LROS (Lloyds register of shipping) |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW |
| Discount Schedule | CS2 |
| GTIN | 03389119603478 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
