| Range Of Product |
Harmony XB4 |
| Product Or Component Type |

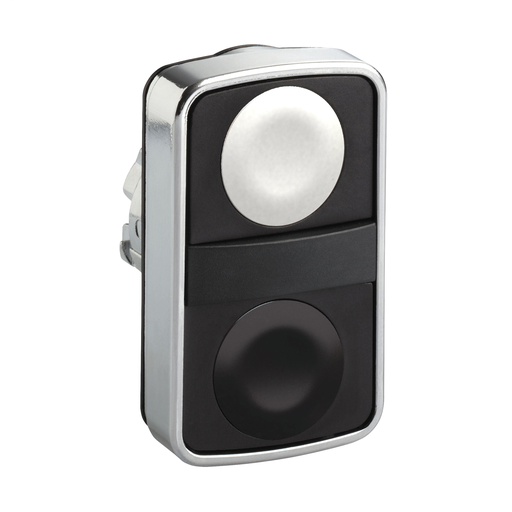

Head for double-headed push-button |
| Device Short Name |
ZB4 |
| Bezel Material |
Black metal |
| Mounting Diameter |
0.87 in (22 mm) |
| Sale Per Indivisible Qty |
1 |
| Shape Of Signaling Unit Head |
Rectangular |
| Type Of Operator |
spring return |
| Operator Profile |
2 flush push-buttons |
| Operators Description |
White unmarked - black unmarked |
| Cad Overall Width |
1.18 in (30 mm) |
| Cad Overall Height |
1.97 in (50 mm) |
| Cad Overall Depth |
1.38 in (35 mm) |
| Product Weight |
0.11 lb(US) (0.052 kg) |
| Resistance High Press Washer |
1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Colour Of Marking |
White marking when green, red or black caps
Black marking when white caps |
| Operator Profile |
Black flush, unmarked
White flush, unmarked |
| Mechanical Durability |
1000000 cycles |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-13…158 °F (-25…70 °C) |
| Electrical Shock Protect Class |
Class I IEC 60536 |
| IP Degree Of Protection |
IP66 IEC 60529 |
| Nema Degree Of Protection |
NEMA 13
NEMA 4X |
| IK Degree Of Protection |
IK03 IEC 50102 |
| Standards |
EN/IEC 60947-5-4
UL 508
JIS C8201-5-1
EN/IEC 60947-5-5
EN/IEC 60947-1
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-1 |
| Product Certifications |
LROS (Lloyds register of shipping)
UL Listed
GL
CSA
BV
RINA
DNV |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| GTIN |
03389110823585 |
| Warranty |
18 months |
