| Range Of Product |

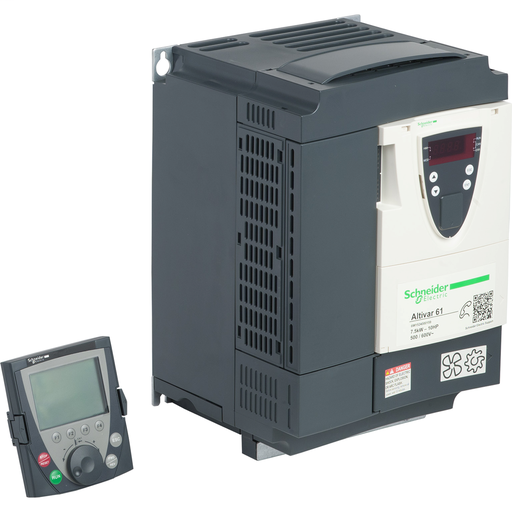

Altivar 61 |
| Product Or Component Type |
Variable speed drive |
| Product Specific Application |
Pumping and ventilation machine |
| Component Name |
ATV61 |
| Motor Power kW |
7.5 kW, 3 phase 500 V |
| Motor Power Hp |
10 hp, 3 phase 575 V |
| Power Supply Voltage |
500...600 V - 15...10 % |
| Supply Number Of Phases |
3 phase |
| Line Current |
21.4 A 500 V 3 phase 7.5 kW / 10 hp
18.4 A 600 V 3 phase 7.5 kW / 10 hp |
| Emc Filter |
Without EMC filter |
| Assembly Style |
With heat sink |
| Maximum Prospective Line Isc |
22 kA 3 phase |
| Max Transient Current |
16.2 A 60 s, 3 phase |
| Nominal Switching Frequency |
4 kHz |
| Switching Frequency |
2.5...6 kHz adjustable
4...6 kHz with derating factor |
| Asynchronous Motor Control |
Voltage/frequency ratio - Energy Saving, quadratic U/f
Flux vector control without sensor, standard
Voltage/frequency ratio, 5 points
Voltage/frequency ratio, 2 points |
| Sync Motor Control Profile |
Vector control without sensor, standard |
| Communication Port Protocol |
Modbus
CANopen |
| Type Of Polarization |
No impedance Modbus |
| Option Card |
Communication card APOGEE FLN
Communication card BACnet
Communication card CC-Link
Controller inside programmable card
Communication card DeviceNet
Communication card Ethernet/IP
Communication card Fipio
I/O extension card
Communication card Interbus-S
Communication card LonWorks
Communication card METASYS N2
Communication card Modbus Plus
Communication card Modbus TCP
Communication card Modbus/Uni-Telway
Multi-pump card
Communication card Profibus DP
Communication card Profibus DP V1 |
| Product Destination |
Asynchronous motors
Synchronous motors |
| Power Supply Voltage Limits |
425…660 V |
| Power Supply Frequency |
50...60 Hz - 5...5 % |
| Power Supply Frequency Limits |
47.5...63 Hz |
| Continuous Output Current |
11 A 4 kHz, 575 V - 3 phase
13.5 A 4 kHz, 500 V - 3 phase |
| Output Frequency |
0.1…599 Hz |
| Speed Range |
1…100 in open-loop mode, without speed feedback |
| Speed Accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback |
| Torque Accuracy |
+/- 15 % in open-loop mode, without speed feedback |
| Transient Overtorque |
130 % of nominal motor torque +/- 10 % 60 s |
| Braking Torque |
<= 125 % with braking resistor
30 % without braking resistor |
| Regulation Loop |
Frequency PI regulator |
| Motor Slip Compensation |
Adjustable
Not available in voltage/frequency ratio (2 or 5 points)
Automatic whatever the load
Can be suppressed |
| Diagnostic |
Drive voltage 1 LED red) |
| Output Voltage |
<= power supply voltage |
| Electrical ISOlation |
Between power and control terminals |
| Type Of Cable For Mounting In An Enclosure |
With an IP21 or an IP31 kit 3 IEC cable 104 °F (40 °C), copper 70 °C / PVC
With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC
Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC
Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR |
| Electrical Connection |
Terminal 2.5 mm² / AWG 14 AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
Terminal 16 mm² / AWG 4 L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) |
| Tightening Torque |
5.31 lbf.in (0.6 N.m) AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
26.55 lbf.in (3 N.m), 26.5 lb.in L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) |
| Supply |
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC, +/- 5 %, <10 mA overload and short-circuit protection
Internal supply 24 V DC 21…27 V), <200 mA overload and short-circuit protection
External supply 24 V DC 19…30 V) |
| Analogue Input Number |
2 |
| Analogue Input Type |
AI1-/Al1+ bipolar differential voltage +/- 10 V DC 24 V max 11 bits + sign
AI2 software-configurable current 0...20 mA 242 Ohm 11 bits
AI2 software-configurable voltage 0...10 V DC 24 V max 30000 Ohm 11 bits |
| Sampling Time |
2 ms +/- 0.5 ms AI1-/Al1+) - analog input
2 ms +/- 0.5 ms Al2) - analog input
2 ms +/- 0.5 ms AO1) - analog output
2 ms +/- 0.5 ms LI1...LI5) - discrete input
2 ms +/- 0.5 ms LI6)if configured as logic input - discrete input |
| Absolute Accuracy Precision |
+/- 0.6 % AI1-/Al1+) for a temperature variation 60 °C
+/- 0.6 % AI2) for a temperature variation 60 °C
+/- 1 % AO1) for a temperature variation 60 °C |
| Linearity Error |
+/- 0.15 % of maximum value AI1-/Al1+)
+/- 0.15 % of maximum value AI2)
+/- 0.2 % AO1) |
| Analogue Output Number |
1 |
| Analogue Output Type |
AO1 software-configurable current 0...20 mA 500 Ohm 10 bits
AO1 software-configurable voltage 0...10 V DC 470 Ohm 10 bits
AO1 software-configurable logic output 10 V, 20 mA |
| Discrete Output Number |
2 |
| Discrete Output Type |
Configurable relay logic R1A, R1B, R1C) NO/NC - 100000 cycles
Configurable relay logic R2A, R2B) NO - 100000 cycles |
| Maximum Response Time |
<= 100 ms in STO (Safe Torque Off)
R1A, R1B, R1C <= 7 ms +/- 0.5 ms
R2A, R2B <= 7 ms +/- 0.5 ms |
