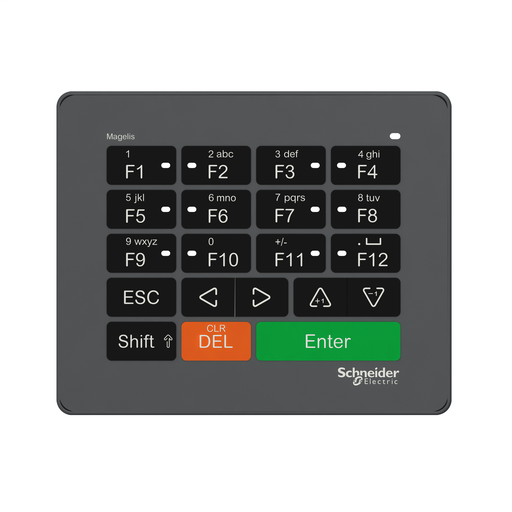

HMIZKB1
USB keyboard – 12 function – keys with LEDs integrated – alphanumeric input
This USB keypad for HMI terminals is supplied via USB and is compatible with Magelis HMI terminals. It is IP65 and has 12 multi-color backlit function keys. This USB keyboard is ideally used as function keys together with an HMI terminal where repetitive and reliable operations in dirty environments are required, while keeping the touch panel clean and protected. It enables operators to have continuous control on the process without finger contact on potentially contaminated screens in industries such as food & beverage. It offers water-resistance and can operate in harsh environments. It is an Ideal complement to Magelis series HMI for direct access to functions without the need to touch the screen.
Add to Quote CatalogueSpecifications
| Part Number | HMIZKB1 |
|---|---|
| Country of Origin | CN |
| UPC | 785901232377 |
| UPC11 | 78590123237 |
| EAN | 3595864174709 |
| Availability | N |
| Lead Time | 33 |
| UNSPSC | 43211506 |
| HTs Code | 8471602000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | No |
| Depth | 1.24 inch |
| Height | 3.15 inch |
| Width | 3.84 inch |
| Weight | 0.33 pound |
Characteristics
| Range Of Product | Harmony HMIZ |
|---|---|
| Product Or Component Type | Keyboard |
| Product Compatibility | HMIGXO HMISTU HMISTO HMIGTO HMISCU |
| Device Application | Industrial machines Food and beverage |
| Provided Equipment | 1 x User Manual 1 x tightening wrench 1 x anti-rotation tee 1 x USB cable type A/mini-B 5.91 ft (1.8 m) 1 x USB type mini-B cable clamp 1 x fixing nut 1 x replaceable label for function keys |
| Software Designation | Vijeo Designer >= V6.2 |
| Connector Type | Mini B USB |
| Number Of Key | 20 |
| Number Of Customisable Keys | 12 with integrated LEDs |
| Colour Of Cover | Front dark grey |
| Us Rated Supply Voltage | 5 V DC USB 2.0 |
| Supply Voltage Limits | 4.75…5.25 V DC |
| Power Consumption In W | 0.75 W |
| Shock Resistance | 147 m/s²3 chocks in each direction X, Y and Z IEC 61131-2 |
| Electromagnetic Compatibility | Electrostatic discharge immunity test 8 kV air discharge) IEC 61000-4-2 Electrostatic discharge immunity test 6 kV contact discharge) IEC 61000-4-2 Electrical fast transient/burst immunity test 2 kV power ports) IEC 61000-4-4 Electrical fast transient/burst immunity test 1 kV signal ports) IEC 61000-4-4 |
| Mounting Location | Flat surface |
| Quantity Per Set | 1 piece |
| Height | 3.15 in (80 mm) |
| Width | 3.84 in (97.6 mm) |
| Depth | 1.24 in (31.5 mm) |
| Product Weight | 0.33 lb(US) (0.15 kg) |
| Ambient Air Temp For Storage | -4…140 °F (-20…60 °C) |
| Ambient Air Temp For Op | 32…131 °F (0…55 °C) |
| Relative Humidity | 10…90 % 32…102 °F (0…39 °C) non-condensing |
| Pollution Degree | 2 |
| Environmental Characteristic | Corrosive gas free |
| Operating Altitude | <= 6561.68 ft (2000 m) |
| Vibration Resistance | 3.5 mm 5…9 Hz)IEC 61131-2 |
| IP Degree Of Protection | IP65 front panel (in enclosure)) |
| Nema Degree Of Protection | NEMA 4X indoor installation NEMA 4X enclosed outdoor |
| Standards | RoHS China SJ/T 11363-2006 EN 61000-6-4 CSA C22.2 No 213 EN 61000-6-2 CSA C22.2 No 142 ANSI/ISA 12.12.01 ROHS directive 2002/95/EC EMC 2004/108/EC UL 508 WEEE directive 2002/96/EC |
| Product Certifications | CE RCM EAC UL/cUL listed |
| Level Or Class | Class I Division 2 Groups A/B/C/D |
| Category | 22000 - Temporary Category for ITS Price Promotion |
| Discount Schedule | I |
| GTIN | 00785901232377 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CN |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
