| Range Of Product |
Hyde Park |
| Sensor Type |

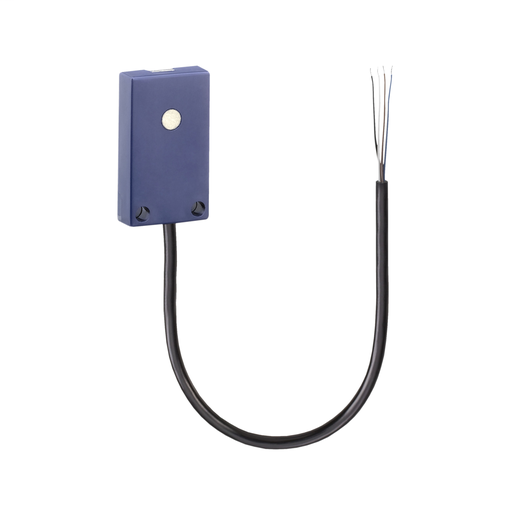

Ultrasonic sensor |
| Series Name |
Superprox + |
| Device Short Name |
SC300 |
| Sensor Design |
Flat form |
| Sn Nominal Sensing Distance |
4.00 in (101.6 mm) |
| Type Of Sensing Window |
Configurable |
| Material |
Plastic |
| Enclosure Material |
ULTEM |
| Front Material |
Glass epoxy |
| Type Of Output Signal |
Discrete |
| Wiring Techniquees |
4-wire |
| Us Rated Supply Voltage |
12...24 V DC overload and short-circuit protection |
| Supply Voltage Limits |
10…28 V DC |
| Electrical Connection |
Cable, 9.84 ft (3 m) |
| Product Specific Application |
Discrete proximity |
| Maximum Differential Travel |
0.03 in (0.7 mm) |
| Blind Zone |
0.25 in (6.4 mm) |
| Transmission Frequency |
500 kHz |
| Repeat Accuracy |
0.7 % |
| Beam Angle |
8 ° |
| Min Size Of Detected Object |
Cylinder diameter 2.5 mm - up to 1 mm sensing distance |
| Current Consumption |
25 mA |
| Maximum Switching Current |
100 mA reverse polarity protection |
| Height |
0.30 in (7.62 mm) |
| Width |
0.75 in (19.05 mm) |
| Depth |
0.30 in (7.62 mm) |
| Length |
1.30 in (33.02 mm) |
| Product Weight |
0.26 lb(US) (0.12 kg) |
| Product Certifications |
UL |
| Marking |
CE |
| Nema Degree Of Protection |
NEMA 4X indoor use only) |
| IP Degree Of Protection |
IP67 |
| Ambient Air Temp For Op |
-22…158 °F (-30…70 °C) |
| Ambient Air Temp For Storage |
-40…212 °F (-40…100 °C) |
| Relative Humidity |
100 % without condensation |
| Vibration Resistance |
+/-1 mm 10…55 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resist To Electromagn Fields |
9.14 V/m (10 V/m) level 3 IEC 61000-4-3 |
| Resistance To Fast Transients |
1 kV level 3 IEC 61000-4-4 |
| Category |
"22490 - SENSORS-ULTRASONIC (XX5,6) |
| Discount Schedule |
DS2 |
| GTIN |
00785901647911 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
US |
| EU RoHs Directive |
Not applicable, out of EU RoHS legal scope |
| Warranty |
18 months |
