ZBRT1

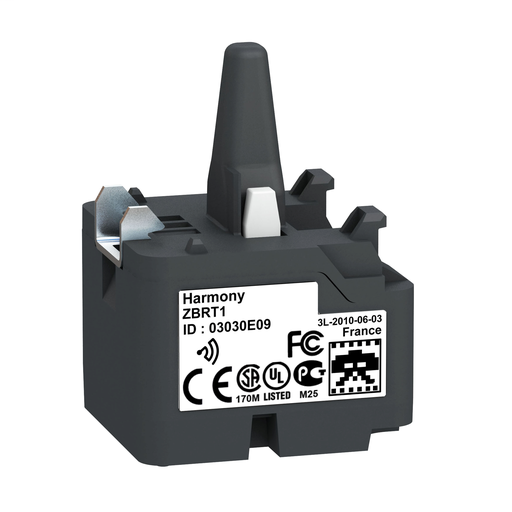

Transmitter wireless batteryless w/o Head
This transmitter is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a transmitter for wireless and batteryless pushbutton. It provides 1 radio frame sent at the push of the button. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 25g.
Add to Quote CatalogueSpecifications
| Part Number | ZBRT1 |
|---|---|
| Country of Origin | FR |
| UPC | 785901590101 |
| UPC11 | 78590159010 |
| EAN | 3606480334726 |
| Availability | N |
| Lead Time | 36 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8517690000 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | Yes |
| Weight | 0.06 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Wireless and batteryless transmitter |
| Device Short Name | XB5R |
| Bezel Material | Plastic |
| Mounting Diameter | 0.87 in (22 mm) |
| Transmission Frequency | 2405 MHz |
| Emission Class | 5M00G7W |
| Antenna Type | Omnidirectional |
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 1 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna Gain | 0 dBi |
| Embedding Depth | 1.65 in (42 mm) |
| Cad Overall Height | 1.63 in (41.5 mm) |
| Cad Overall Width | 1.18 in (30 mm) |
| Cad Overall Depth | 1.69 in (43 mm) |
| Product Weight | 0.06 lb(US) (0.025 kg) |
| Operating Travel | 0.17 in (4.3 mm) total travel) |
| Operating Force | 25 N C/O changing electrical state |
| Mechanical Robustness | Free fall resistance 1000 mm EN/IEC 60068-2-32 |
| Standards | EN/IEC 60947-5-1 CSA C22.2 No 14 UL 508 EN/IEC 60947-1 |
| Radio Agreement | ANATEL ARIB T66 FCC ICASA RSS SRRC |
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Maximum Sensing Distance | 328.08 ft (100 m) in free field 82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure 984.25 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Acquisition Time | 2 ms |
| Response Time | < 2 ms |
| Fixing Mode | Fixing nut beneath head 17.70…21.24 lbf.in (2…2.4 N.m) |
| Electrical Composition Code | PW1 |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…131 °F (-25…55 °C) |
| Relative Humidity | 95 % 158 °F (70 °C) without condensation |
| IP Degree Of Protection | IP65 IEC 60529 front face) IP30 IEC 60529 back face) IP65 UL Type 12 front face) |
| IK Degree Of Protection | IK03 IEC 50102 |
| Mechanical Durability | 1000000 cycles |
| Shock Resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance | 5 gn 11…500 Hz)IEC 60068-2-6 +/- 10 mm 2…11 Hz)IEC 60068-2-6 |
| Electromagnetic Compatibility | Electrostatic discharge immunity test 8 kV in free air (in insulating parts)) Electrostatic discharge immunity test 6 kV on contact (on metal parts)) Susceptibility to electromagnetic fields 10 V/m 80...2000 MHz) Susceptibility to electromagnetic fields 3 V/m 80...2700 MHz, distance = 20 m) Immunity for industrial environments Radiated emission |
| Product Certifications | CSA GOST CCC C-tick UL BT 2006/95/EC |
| Directives | 1999/5/EC - R&TTE directive 2004/108/EC - electromagnetic compatibility |
| Category | 22470 - XB5R WIRELESS PUSH BUTTON |
| Discount Schedule | I |
| GTIN | 00785901590101 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
