ZB5RTC2
Transmitter- Ø40 mm- Mushroom Head pushbutton -spring return

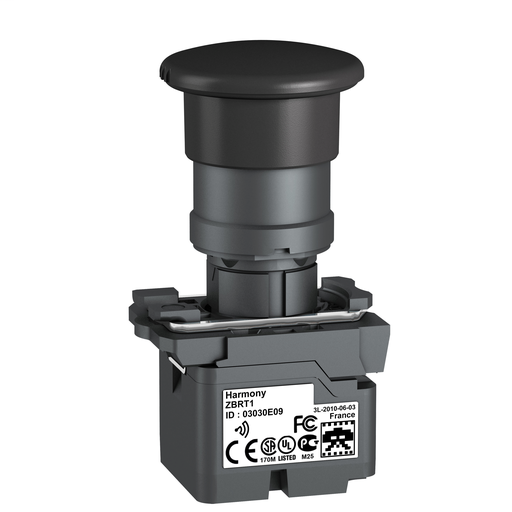

This wireless and batteryless push button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return black mushroom head, diameter 40mm. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 55g.
Add to Quote CatalogueSpecifications
| Part Number | ZB5RTC2 |
|---|---|
| Country of Origin | FR |
| UPC | 785901144328 |
| UPC11 | 78590114432 |
| EAN | 3606480571763 |
| Availability | N |
| Lead Time | 36 |
| UNSPSC | 39122216 |
| HTs Code | 8537109170 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | Yes |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Wireless and batteryless transmitter |
| Device Short Name | XB5R |
| Bezel Material | Dark grey plastic |
| Fixing Collar Material | Plastic |
| Mounting Diameter | 1.57 in (40 mm) |
| Transmission Frequency | 2405 MHz |
| Emission Class | 5M00G7W |
| Antenna Type | Omnidirectional |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return push-button with transmitter |
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 1 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna Gain | 0 dBi |
| Embedding Depth | 1.69 in (43 mm) |
| Cad Overall Height | 1.68 in (42.75 mm) |
| Cad Overall Width | 1.09 in (27.8 mm) |
| Cad Overall Depth | 1.13 in (28.8 mm) |
| Operating Travel | 0.17 in (4.3 mm) total travel) |
| Operating Force | 25 N C/O changing electrical state |
| Mechanical Robustness | Free fall resistance 1000 mm EN/IEC 60068-2-32 |
| Standards | EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-1 UL 508 |
| Radio Agreement | ANATEL ARIB T66 FCC ICASA RSS SRRC |
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Maximum Sensing Distance | 328.08 ft (100 m) in free field 82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure 984.25 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Acquisition Time | 2 ms |
| Response Time | < 2 ms |
| Emission Power | 3 mW |
| Fixing Mode | Fixing nut beneath head 17.70…21.24 lbf.in (2…2.4 N.m) |
| Device Composition | ZB5RZC2 ZBRT1 |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Relative Humidity | 95 % 158 °F (70 °C) without condensation |
| IP Degree Of Protection | IP65 IEC 60529 front face) IP30 IEC 60529 back face) IP65 UL Type 12 front face) |
| IK Degree Of Protection | IK03 IEC 50102 |
| Mechanical Durability | 1000000 cycles |
| Shock Resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance | +/- 10 mm 2…11 Hz)IEC 60068-2-6 |
| Electromagnetic Compatibility | Electrostatic discharge immunity test 8 kV in free air (in insulating parts)) Electrostatic discharge immunity test 6 kV on contact (on metal parts)) Susceptibility to electromagnetic fields 10 V/m 80...2000 MHz) Susceptibility to electromagnetic fields 3 V/m 80...2700 MHz, distance = 20 m) Immunity for industrial environments Radiated emission |
| Product Certifications | BT 2006/95/EC CCC CSA GOST UL C-tick |
| Directives | 2004/108/EC - electromagnetic compatibility 1999/5/EC - R&TTE directive |
| Category | 22470 - XB5R WIRELESS PUSH BUTTON |
| Discount Schedule | I |
| GTIN | 00785901144328 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
