9070T250D20

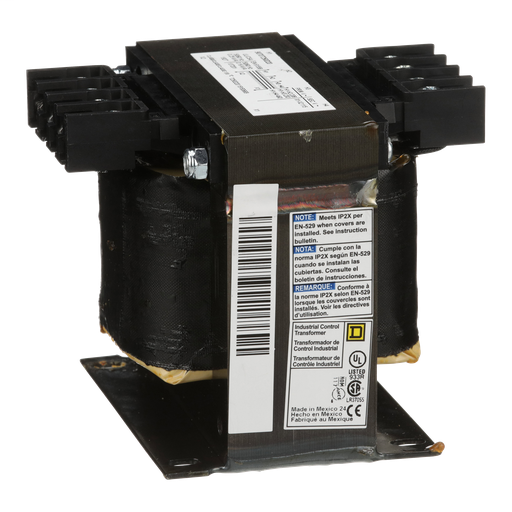

Transformer, Type T, industrial control, 250 VA, 208/230/460 VAC pri / 115 VAC second, 1 phase, 50/60 Hz, 80 °C rise
Specifications
| Part Number | 9070T250D20 |
|---|---|
| Country of Origin | MX |
| UPC | 785901905127 |
| UPC11 | 78590190512 |
| EAN | 0785901905127 |
| Availability | S |
| Lead Time | 7 |
| UNSPSC | 39121002 |
| HTs Code | 8504314065 |
| Prop 65 | This product can expose you to chemicals including: Phenyl glycidyl ether which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP8 |
| Return Indicator | Yes |
| Depth | 4.74 inch |
| Height | 3.84 inch |
| Width | 4.5 inch |
Characteristics
| Product Or Component Type | Industrial Control Transformer |
|---|---|
| Power Rating | 250 VA |
| Primary Voltage | 208/230/460 V |
| Secondary Voltage | 115 V |
| Type | T |
| Number Of Phases | 1 phase |
| Power Rating | 250 VA UL 250 VA CSA 250 VA NOM 160 VA |
| Primary To Secondary Voltage | 208/230/460 V 115 V |
| Temperature Rise | 80 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 3.84 in (97.54 mm) |
| Width | 4.5 in (114.30 mm) |
| Depth | 4.74 in (120.40 mm) |
| Material | Copper winding |
| Fingersafe Cover Compatibility | FSC2 |
| Product Certifications | CSA file LR37055 guide 184-N-90 UL listed file E61239 |
| Enclosure Type | Not rated (open device) |
| Insulation Temperature | 266 °F (130 °C) |
| Category | 16201 - 9070 T (NOT TF) 250-2000VA |
| Discount Schedule | CP8 |
| GTIN | 00785901905127 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Warranty | 10 Years |
