ZBV9B

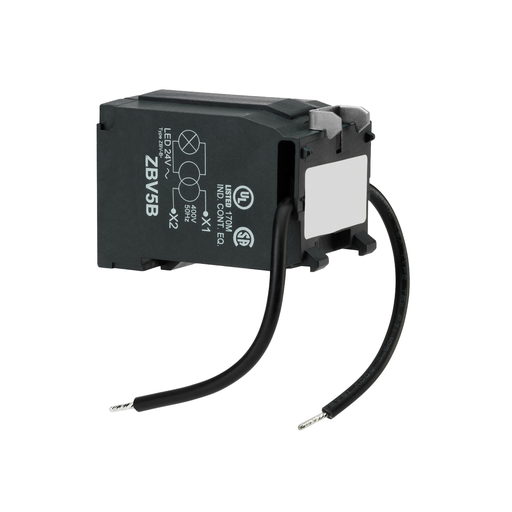

Transformer block for light block with integral LED – 550…600V
This Harmony ZB, transformer is supplied with 550 to 600Vac. It is compatible with Harmony XB4 light block with integral LED. This transformer block is designed to be used with light blocks with integral LED and is compatible with Harmony XB4 and XB5 lighting in control and signaling units. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Add to Quote CatalogueSpecifications
| Part Number | ZBV9B |
|---|---|
| UPC | 389119039802 |
| UPC11 | 38911903980 |
| EAN | 3389119039802 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Weight | 0.20 pound |
Characteristics
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Transformer block |
| Product Compatibility | Light block with integral LED 24 V AC |
| Device Short Name | ZBV |
| Sale Per Indivisible Qty | 1 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| Us Rated Supply Voltage | 550...600 V AC 60 Hz |
| Cad Overall Width | 1.18 in (30 mm) |
| Cad Overall Height | 1.32 in (33.6 mm) |
| Cad Overall Depth | 1.83 in (46.6 mm) |
| Product Weight | 0.20 lb(US) (0.09 kg) |
| Electrical Shock Protect Class | Class I IEC 60536 |
| Supply Voltage Limits | 564…586 V |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Electrical Composition Code | M6 P2 |
| Device Presentation | Basic element |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| IP Degree Of Protection | IP20 IEC 60529 |
| Standards | JIS C 4520 CSA C22.2 No 14 UL 508 EN/IEC 60947-5-4 EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60947-5-5 |
| Product Certifications | BV CSA GL RINA DNV UL Listed LROS (Lloyds register of shipping) |
| Vibration Resistance | 2 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 15 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resist To Electromagn Fields | 9.14 V/m (10 V/m) IEC 61000-4-3 |
| Resist Electrostatic Dischrg | 6 kV in contact IEC 61000-4-2 8 kV in free air IEC 61000-4-2 |
| Electromagnetic Emission | Class B IEC 55011 |
| GTIN | 03389119039802 |
| Nbr. Of Units In Pkg. | 1 |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
