| Range Of Product |
Harmony STO & STU |
| Product Or Component Type |

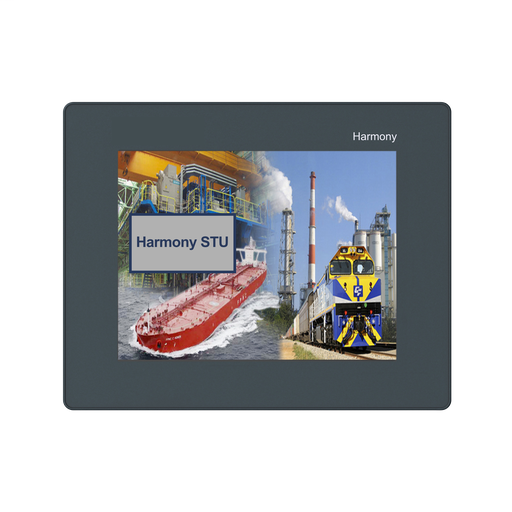

Touch panel screen |
| Software Designation |
Vijeo Designer |
| Operating System |
Harmony |
| Processor Name |
CPU ARM9 |
| Display Size |
5.7 inch |
| Display Type |
QVGA TFT colour touchscreen |
| Display Colour |
65536 colours |
| Display Resolution |
320 x 240 pixels QVGA |
| Touch Panel |
Analogue |
| Backlight Lifespan |
50000 hours |
| Brightness |
16 levels |
| Character Font |
ASCII
Japanese (ANK, Kanji)
Chinese (simplified Chinese)
Taiwanese (traditional Chinese)
Korean |
| Us Rated Supply Voltage |
24 V DC |
| Supply |
External source |
| Supply Voltage Limits |
20.4…28.8 V |
| Inrush Current |
30 A |
| Power Consumption In W |
6.8 W |
| Number Of Pages |
Limited by internal memory capacity |
| Processor Frequency |
333 MHz |
| Memory Description |
Application memory 16 MB
Back up of data 64 kB |
| Integrated Connection Type |
1 USB 2.0 type mini B
1 USB 2.0 type A
COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s)
power supply - removable screw terminal block
1 Ethernet - RJ45 |
| Realtime Clock |
Access to the PLC real-time clock |
| Downloadable Protocols |
Third party protocols
Uni-TE
Modbus
Modbus TCP/IP |
| Fixing Mode |
Ø 22 mm hole |
| Enclosure Material |
PC/PBT and PAA |
| Marking |
CE
Without Schneider logo |
| Height |
5.08 in (129.15 mm) |
| Width |
6.42 in (163 mm) |
| Depth |
2.22 in (56.5 mm) |
| Immunity To Microbreaks |
7 ms |
| Standards |
IEC 61000-6-2
UL 508
UL 1604
EN 61131-2
FCC Class A |
| Product Certifications |
CULus
C-tick
UL class 1 Div2 T4A ou T5
Marine |
| Ambient Air Temp For Op |
32…122 °F (0…50 °C) |
| Ambient Air Temp For Storage |
-4…140 °F (-20…60 °C) |
| Relative Humidity |
0…85 % without condensation |
| Operating Altitude |
<= 6561.68 ft (2000 m) |
| IP Degree Of Protection |
IP20 IEC 60529 rear panel)
IP65 IEC 60529 front panel) |
| Nema Degree Of Protection |
NEMA 4X front panel indoor use) |
| Shock Resistance |
15 gn 11 msIEC 60068-2-27 |
| Vibration Resistance |
+/- 3.5 mm 5…9 Hz) IEC 60068-2-6
1 gn 9…150 Hz) IEC 60068-2-6 |
| Resist To Electromagn Fields |
9.14 V/m (10 V/m) IEC 61000-4-3 |
| Category |
22569 - MAGELIS XBT-GT (AND XBT-G) |
| Discount Schedule |
MC2 |
| GTIN |
00785901672234 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
CN |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
