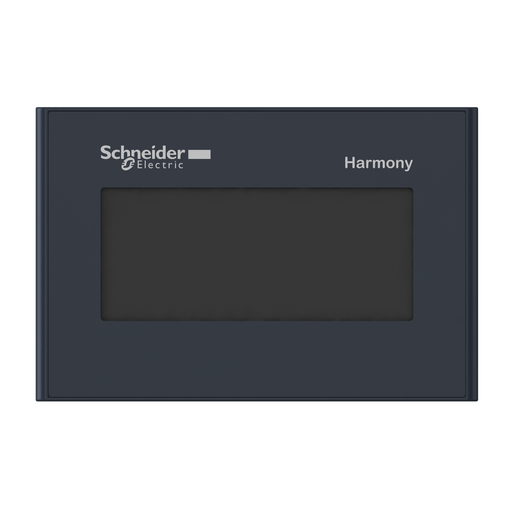

This product is part of the Harmony STO & STU range, an offer of touch panel screens. The touch panel screen features 3.4inch backlit monochrome STN LCD display with a resolution of 200 x 80 pixels. It is equipped with 1 USB 2.0 type mini B, 1 USB 2.0 type A, power supply removable screw terminal block and serial link 9-pin terminal block – RS232C integrated connections. It supports Magelis operating system and Chinese (simplified Chinese), Korean, Taiwanese (traditional Chinese), Japanese (ANK, Kanji) and ASCII character fonts. It is an IP20 (rear panel) / IP65 (front panel) and NEMA 4X rated product. The enclosure is made of PPT. This product is certified by CE, CULus, UL and C-Tick. It meets FCC Class A, UL 1604, UL 508, IEC 61000-6-2, EN 61131-2 standards. This product is compatible with Zelio Logic ranges.
Add to Quote CataloguePart Number | HMISTO501 |
---|---|
Country of Origin | CN |
UPC | 785901071518 |
UPC11 | 78590107151 |
EAN | 3595864127835 |
Availability | N |
Lead Time | 27 |
UNSPSC | 43211715 |
ECCN | EAR99 |
HTs Code | 8537108000 |
Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Discount Schedule | MC2 |
Return Indicator | No |
Range Of Product | Harmony STO & STU |
---|---|
Product Or Component Type | Touch panel screen |
Software Designation | Vijeo Designer |
Operating System | Harmony |
Processor Name | CPU RISC |
Display Size | 3.4 inch |
Display Type | Backlit monochrome STN LCD |
Background Colour | White, pink and red |
Display Resolution | 200 x 80 pixels |
Touch Panel | Analogue |
Backlight Lifespan | 10000 hours red 50000 hours pink 50000 hours white |
Brightness | 8 levels |
Contrast | 16 levels via touch panel |
Character Font | Korean Japanese (ANK, Kanji) Taiwanese (traditional Chinese) Chinese (simplified Chinese) ASCII |
[Us] Rated Supply Voltage | 24 V DC +/- 20 % |
Inrush Current | 30 A |
Local Signalling | Normal operation 1 LED green) |
Power Consumption In W | 5 W |
Number Of Pages | Limited by internal memory capacity |
Processor Frequency | 333 MHz |
Memory Description | Application memory 16 MB Back up of data 128 kB |
Integrated Connection Type | 1 USB 2.0 type mini B 1 USB 2.0 type A power supply - removable screw terminal block serial link - 9-pin terminal block - RS232C |
Supply | External source |
Realtime Clock | Access to the PLC real-time clock |
Downloadable Protocols | Zelio |
Range Compatibility | Zelio Logic |
Fixing Mode | By 2 spring clips 1.6...5 mm thick panel |
Enclosure Material | PPT |
Marking | CE |
Immunity To Microbreaks | 3 ms |
Standards | IEC 61000-6-2 FCC Class A UL 508 UL 1604 EN 61131-2 |
Product Certifications | CE UL Class 1 Division 2 T5 UL Class 1 Division 2 T4A C-tick CULus |
Ambient Air Temp For Op | 32…122 °F (0…50 °C) |
Ambient Air Temp For Storage | -4…140 °F (-20…60 °C) |
Relative Humidity | 0…90 % without condensation |
Operating Altitude | <= 6561.68 ft (2000 m) |
IP Degree Of Protection | IP20 IEC 60529 rear panel) IP65 IEC 60529 front panel) |
Nema Degree Of Protection | NEMA 4X front panel indoor use) |
Shock Resistance | 15 gn 11 msIEC 60068-2-27 |
Vibration Resistance | +/- 3.5 mm 5…9 Hz) IEC 60068-2-6 1 gn 9…150 Hz) IEC 60068-2-6 |
Electromagnetic Compatibility | Resistance to radiated electromagnetic fields 10 V/m IEC 61000-4-3 |
Category | 22569 - MAGELIS XBT-GT (AND XBT-G) |
Discount Schedule | MC2 |
GTIN | 00785901071518 |
Nbr. Of Units In Pkg. | 1 |
Country Of Origin | CN |
REACh Free Of SVHC | Yes |
EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Mercury Free | Yes |
WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
