VLSH4S5B

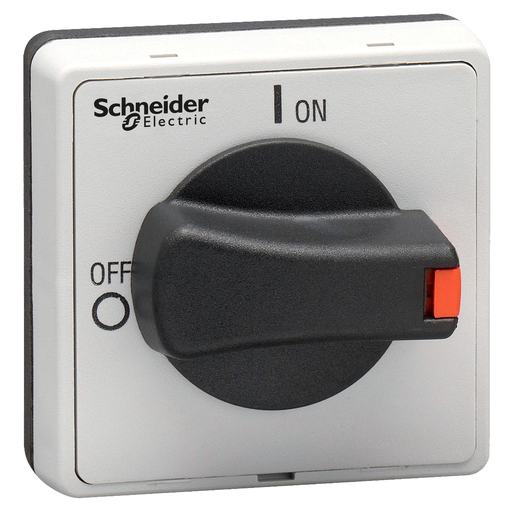

TeSys VLS – rot. handle – screwfixing – black – shaft 5 mm – 48×48 mm
Specifications
| Part Number | VLSH4S5B |
|---|---|
| Country of Origin | IT |
| UPC | 785901578093 |
| UPC11 | 78590157809 |
| EAN | 3606481157010 |
| Availability | N |
| Lead Time | 3 |
| HTs Code | 8538906000 |
| Prop 65 | This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | No |
| Depth | 1.54 inch |
| Height | 1.89 inch |
| Width | 1.89 inch |
| Weight | 0.13 pound |
Characteristics
| Range | TeSys |
|---|---|
| Device Short Name | VLSH |
| Product Or Component Type | Rotary handle |
| Range Compatibility | TeSys VARIO LS VLS3P |
| Handle Colour | Black |
| Handle Front Plate Colour | Grey |
| Rotary Handle Padlocking | 1 padlock 0.16…0.31 in (4…8 mm) |
| Marking | 0 - 1 |
| Fixing Mode | By 4 screws |
| Tightening Torque | 20.36 lbf.in (2.3 N.m) |
| Base Dimension | 48 x 48 mm |
| Height | 1.89 in (48 mm) |
| Width | 1.89 in (48 mm) |
| Depth | 1.54 in (39 mm) |
| Product Weight | 0.13 lb(US) (0.06 kg) |
| IP Degree Of Protection | IP65 |
| Nema Degree Of Protection | NEMA 1 NEMA 2 UL 508 NEMA 3R UL 508 NEMA 4 UL 508 NEMA 4X UL 508 NEMA 12 UL 508 NEMA 12K UL 508 |
| Category | 21734 - TESYS VLS DISCONNECT SWITCHES |
| Discount Schedule | CP1 |
| GTIN | 00785901578093 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | IT |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
