| Range |
TeSys |
| Product Name |

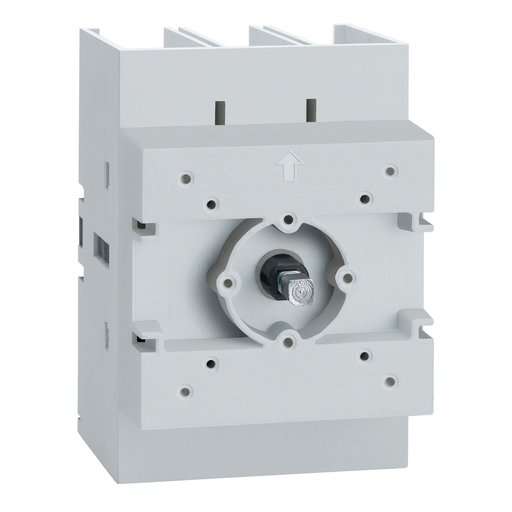

TeSys VARIO LS |
| Device Short Name |
VLS3P |
| Product Or Component Type |
Switch body |
| Performance Level |
High performance |
| Poles Description |
3P |
| Contacts Type And Composition |
3 NO |
| Network Type |
AC |
| Network Frequency |
50/60 Hz |
| Mounting Support |
Door |
| Ue Rated Operational Voltage |
690 V AC 50/60 Hz |
| Uimp Rated Imp Wstd Voltage |
8 kV |
| Ith Cnvtl Free Air Therm Crrt |
63 A 131 °F (55 °C) |
| Ithe Cnvtl Enclosed Therm Crrt |
63 A |
| Ie Rated Operational Current |
63 A AC-21A Ue: 400 V
63 A AC-21A Ue: 500 V
63 A AC-21A Ue: 690 V
63 A AC-22A Ue: 400 V
63 A AC-22A Ue: 500 V
63 A AC-22A Ue: 690 V
63 A AC-23A Ue: 400 V
63 A AC-23A Ue: 500 V
47 A AC-23A Ue: 690 V
60 A Ue: 600 V UL98 |
| Rated Opr Power In W |
45 kW 500 V AC-23A)
45 kW 690 V AC-23A)
30 kW 400 V AC-23A) |
| Intermittent Duty Class |
Class 120 - 60 % |
| Making Capacity ( I Rms) |
630 A 690 V AC-23A
94.5 A 690 V AC-21A
189 A 690 V AC-22A |
| Icm Rated Sc Making Cap |
3550 A 690 V |
| [Icw] Rated Short-Time Withstand Rms Current |
2500 A 690 V 1 s |
| Rtd Cond Short-Cct Current |
50 kA 400 V 63 A gG |
| Breaking Capacity |
94.5 A 690 V AC-21A)
189 A 690 V AC-22A)
504 A 690 V AC-23A) |
| Mechanical Durability |
30000 cycles |
| Electrical Durability |
30000 cycles AC-21 |
| Connections - Terminals |
Power circuit screw clamp terminals 0.08 in² (50 mm²) solid
Power circuit screw clamp terminals 0.11 in² (70 mm²) flexible - without cable end |
| Tightening Torque |
Power circuit 44.25…53.10 lbf.in (5…6 N.m) screw clamp terminals |
| Height |
2.76 in (70 mm) |
| Width |
2.76 in (70 mm) |
| Depth |
3.94 in (100 mm) |
| Product Weight |
0.80 lb(US) (0.365 kg) |
| Colour |
Gray |
| Standards |
UL98
IEC 60947-3
CSA C22.2 No 4 |
| Product Certifications |
GL |
| IP Degree Of Protection |
IP20 IEC 60529 |
| Mechanical Robustness |
Vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6
Shocks 11 ms Ea 15 gn) IEC 60068-2-27 |
| Ambient Air Temp For Op |
-13…131 °F (-25…55 °C) |
| Fire Resistance |
1760 °F (960 °C) IEC 60695-2-11 |
| Category |
21734 - TESYS VLS DISCONNECT SWITCHES |
| Discount Schedule |
CP1 |
| GTIN |
00785901566113 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
IT |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Compliant |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
