| Range |
TeSys |

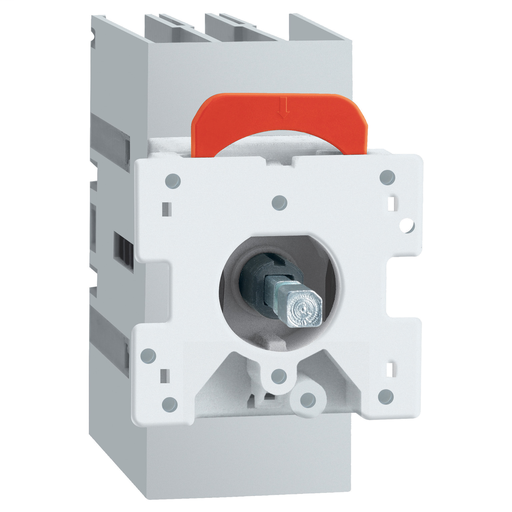

| Product Name |
TeSys VARIO LS |
| Device Short Name |
VLS3P |
| Product Or Component Type |
Switch body |
| Performance Level |
High performance |
| Poles Description |
3P |
| Contacts Type And Composition |
3 NO |
| Network Type |
AC |
| Network Frequency |
50/60 Hz |
| Mounting Support |
Door |
| Ue Rated Operational Voltage |
690 V AC 50/60 Hz |
| Uimp Rated Imp Wstd Voltage |
8 kV |
| Ith Cnvtl Free Air Therm Crrt |
25 A 131 °F (55 °C) |
| Ithe Cnvtl Enclosed Therm Crrt |
25 A |
| Ie Rated Operational Current |
25 A AC-21A Ue: 400 V
25 A AC-21A Ue: 500 V
25 A AC-21A Ue: 690 V
25 A AC-22A Ue: 400 V
25 A AC-22A Ue: 500 V
25 A AC-22A Ue: 690 V
25 A AC-23A Ue: 400 V
25 A AC-23A Ue: 500 V
25 A AC-23A Ue: 690 V
25 A Ue: 600 V UL 508 |
| Rated Opr Power In W |
22 kW 690 V AC-23A)
11 kW 400 V AC-23A)
15 kW 500 V AC-23A) |
| Intermittent Duty Class |
Class 120 - 60 % |
| Making Capacity ( I Rms) |
250 A 690 V AC-23A
37.5 A 690 V AC-21A
75 A 690 V AC-22A |
| Icm Rated Sc Making Cap |
1128 A 690 V |
| [Icw] Rated Short-Time Withstand Rms Current |
800 A 690 V 1 s |
| Rtd Cond Short-Cct Current |
50 kA 400 V 25 A gG |
| Breaking Capacity |
37.5 A 690 V AC-21A)
75 A 690 V AC-22A)
200 A 690 V AC-23A) |
| Mechanical Durability |
100000 cycles |
| Electrical Durability |
100000 cycles AC-21A |
| Connections - Terminals |
Power circuit screw clamp terminals 0.02 in² (10 mm²) solid
Power circuit screw clamp terminals 0.02 in² (16 mm²) flexible - without cable end |
| Tightening Torque |
Power circuit 15.93…17.70 lbf.in (1.8…2 N.m) screw clamp terminals |
| Height |
2.87 in (73 mm) |
| Width |
1.77 in (45 mm) |
| Depth |
3.07 in (78 mm) |
| Product Weight |
0.30 lb(US) (0.135 kg) |
| Colour |
Gray |
| Standards |
UL 508
CSA C22.2 No 14
IEC 60947-3 |
| Product Certifications |
GL |
| IP Degree Of Protection |
IP20 IEC 60529 |
| Mechanical Robustness |
Vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6
Shocks 11 ms Ea 15 gn) IEC 60068-2-27 |
| Ambient Air Temp For Op |
-13…131 °F (-25…55 °C) |
| Fire Resistance |
1760 °F (960 °C) IEC 60695-2-11 |
| Category |
21734 - TESYS VLS DISCONNECT SWITCHES |
| Discount Schedule |
CP1 |
| GTIN |
00785901560548 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
IT |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Compliant |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
