Part Number | VLS3P025R1 |
---|---|
Country of Origin | IT |
UPC | 785901560425 |
UPC11 | 78590156042 |
EAN | 3606481156440 |
Availability | N |
Lead Time | 3 |
UNSPSC | 39122233 |
HTs Code | 8536509065 |
RoHS Compliant | Yes |
Discount Schedule | CP1 |
Return Indicator | Yes |
Depth | 3.07 inch |
Height | 2.95 inch |
Width | 1.42 inch |
Weight | 0.30 pound |
Range | TeSys |
---|---|

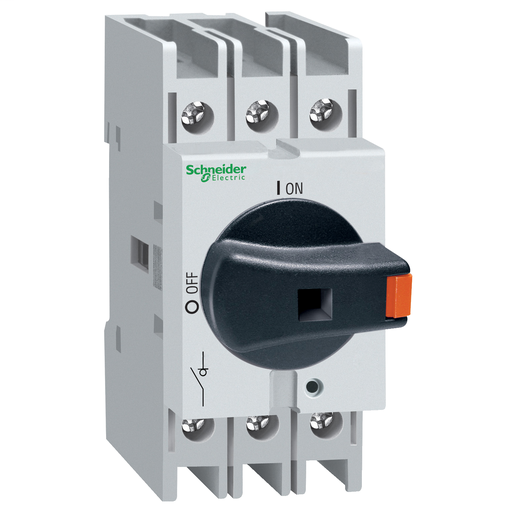

Product Name | TeSys VARIO LS |
Device Short Name | VLS3P |
Product Or Component Type | Switch body |
Performance Level | High performance |
Poles Description | 3P |
Contacts Type And Composition | 3 NO |
Network Type | AC |
Network Frequency | 50/60 Hz |
Control Type | Rotary handle |
Rotary Handle Mounting Style | Direct |
Handle Colour | Black |
Handle Front Plate Colour | Grey |
Suitability For ISOlation | Yes |
Rotary Handle Padlocking | 1 padlock 0.16 in (4 mm) |
Marking | 0 - 1 |
Mounting Support | Back DIN rail |
Fixing Mode | By clips back |
Ue Rated Operational Voltage | 690 V AC 50/60 Hz |
Uimp Rated Imp Wstd Voltage | 8 kV |
Ith Cnvtl Free Air Therm Crrt | 25 A 131 °F (55 °C) |
Ithe Cnvtl Enclosed Therm Crrt | 25 A |
Ie Rated Operational Current | 25 A AC-21A Ue: 400 V 25 A AC-21A Ue: 500 V 25 A AC-21A Ue: 690 V 25 A AC-22A Ue: 400 V 25 A AC-22A Ue: 500 V 25 A AC-22A Ue: 690 V 25 A AC-23A Ue: 400 V 25 A AC-23A Ue: 500 V 25 A AC-23A Ue: 690 V 25 A Ue: 600 V UL 508 |
Rated Opr Power In W | 22 kW 690 V AC-23A) 11 kW 400 V AC-23A) 15 kW 500 V AC-23A) |
Intermittent Duty Class | Class 120 - 60 % |
Making Capacity ( I Rms) | 37.5 A 690 V AC-21A 75 A 690 V AC-22A 250 A 690 V AC-23A |
Icm Rated Sc Making Cap | 1128 A 690 V |
[Icw] Rated Short-Time Withstand Rms Current | 800 A 690 V 1 s |
Rtd Cond Short-Cct Current | 50 kA 400 V 25 A gG |
Breaking Capacity | 37.5 A 690 V AC-21A) 75 A 690 V AC-22A) 200 A 690 V AC-23A) |
Device Composition | Switch Handle |
Mechanical Durability | 100000 cycles |
Electrical Durability | 100000 cycles AC-21A |
Connections - Terminals | Power circuit screw clamp terminals 0.02 in² (10 mm²) solid Power circuit screw clamp terminals 0.02 in² (16 mm²) flexible - without cable end |
Tightening Torque | Power circuit 15.93…17.70 lbf.in (1.8…2 N.m) screw clamp terminals |
Height | 2.95 in (75 mm) |
Width | 1.42 in (36 mm) |
Depth | 3.07 in (78 mm) |
Product Weight | 0.30 lb(US) (0.135 kg) |
Colour | Gray |
Standards | IEC 60947-3 CSA C22.2 No 14 UL 508 |
Product Certifications | GL |
IP Degree Of Protection | IP20 IEC 60529 |
Mechanical Robustness | Vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 Shocks 11 ms Ea 15 gn) IEC 60068-2-27 |
Ambient Air Temp For Op | -13…131 °F (-25…55 °C) |
Fire Resistance | 1760 °F (960 °C) IEC 60695-2-11 |
Category | 21734 - TESYS VLS DISCONNECT SWITCHES |
Discount Schedule | CP1 |
GTIN | 00785901560425 |
Nbr. Of Units In Pkg. | 1 |
