| Part Number | VLS3P125R2 |
|---|---|
| Country of Origin | IT |
| UPC | 785901560524 |
| UPC11 | 78590156052 |
| EAN | 3606481156501 |
| Availability | N |
| Lead Time | 44 |
| UNSPSC | 39122233 |
| HTs Code | 8536509065 |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
| Depth | 3.94 inch |
| Height | 2.95 inch |
| Width | 2.76 inch |
| Weight | 0.80 pound |
| Range | TeSys |
|---|---|

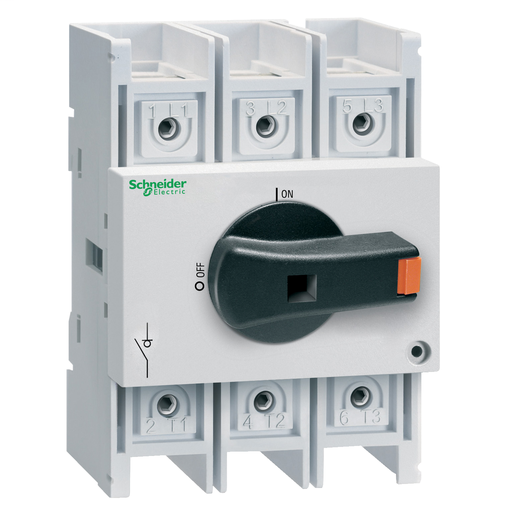

| Product Name | TeSys VARIO LS |
| Device Short Name | VLS3P |
| Product Or Component Type | Switch body |
| Performance Level | High performance |
| Poles Description | 3P |
| Contacts Type And Composition | 3 NO |
| Network Type | AC |
| Network Frequency | 50/60 Hz |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Direct |
| Handle Colour | Black |
| Handle Front Plate Colour | Grey |
| Suitability For ISOlation | Yes |
| Rotary Handle Padlocking | 1 padlock 0.16 in (4 mm) |
| Marking | 0 - 1 |
| Mounting Support | Back DIN rail |
| Fixing Mode | By clips back |
| Ue Rated Operational Voltage | 690 V AC 50/60 Hz |
| Uimp Rated Imp Wstd Voltage | 8 kV |
| Ith Cnvtl Free Air Therm Crrt | 125 A 131 °F (55 °C) |
| Ithe Cnvtl Enclosed Therm Crrt | 100 A |
| Ie Rated Operational Current | 47 A AC-23A Ue: 690 V 100 A Ue: 600 V UL98 125 A AC-21A Ue: 400 V 125 A AC-21A Ue: 500 V 125 A AC-21A Ue: 690 V 125 A AC-22A Ue: 400 V 125 A AC-22A Ue: 500 V 125 A AC-22A Ue: 690 V 125 A AC-23A Ue: 400 V 100 A AC-23A Ue: 500 V |
| Rated Opr Power In W | 45 kW 500 V AC-23A) 45 kW 690 V AC-23A) 55 kW 400 V AC-23A) |
| Intermittent Duty Class | Class 120 - 60 % |
| Making Capacity ( I Rms) | 187.5 A 690 V AC-21A 375 A 690 V AC-22A 1250 A 690 V AC-23A |
| Icm Rated Sc Making Cap | 3550 A 690 V |
| [Icw] Rated Short-Time Withstand Rms Current | 2500 A 690 V 1 s |
| Rtd Cond Short-Cct Current | 50 kA 400 V 125 A gG |
| Breaking Capacity | 187.5 A 690 V AC-21A) 375 A 690 V AC-22A) 1000 A 690 V AC-23A) |
| Device Composition | Switch Handle |
| Mechanical Durability | 30000 cycles |
| Electrical Durability | 30000 cycles AC-21 |
| Connections - Terminals | Power circuit screw clamp terminals 0.08 in² (50 mm²) solid Power circuit screw clamp terminals 0.11 in² (70 mm²) flexible - without cable end |
| Tightening Torque | Power circuit 44.25…53.10 lbf.in (5…6 N.m) screw clamp terminals |
| Height | 2.95 in (75 mm) |
| Width | 2.76 in (70 mm) |
| Depth | 3.94 in (100 mm) |
| Product Weight | 0.80 lb(US) (0.365 kg) |
| Colour | Gray |
| Standards | IEC 60947-3 UL98 CSA C22.2 No 4 |
| Product Certifications | GL |
| IP Degree Of Protection | IP20 IEC 60529 |
| Mechanical Robustness | Vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 Shocks 11 ms Ea 15 gn) IEC 60068-2-27 |
| Ambient Air Temp For Op | -13…131 °F (-25…55 °C) |
| Fire Resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Category | 21734 - TESYS VLS DISCONNECT SWITCHES |
| Discount Schedule | CP1 |
| GTIN | 00785901560524 |
| Nbr. Of Units In Pkg. | 1 |
