| Range |
TeSys |
| Device Short Name |
VLSA |
| Product Or Component Type |

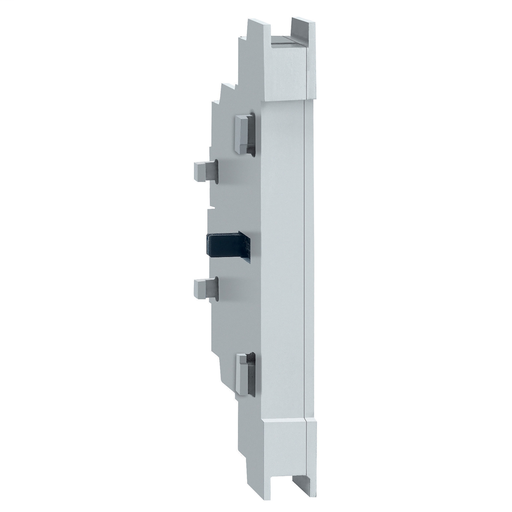

Auxiliary contact block |
| Performance Level |
High performance |
| Contacts Type And Composition |
1 NC + 1 NO |
| Contact Operation |
Simultaneous 1 NC
Simultaneous 1 NO |
| Range Compatibility |
TeSys VARIO LS VLSA
TeSys VARIO LS VLS3P
TeSys VARIO LS VLS1P |
| Network Type |
DC
AC |
| Network Frequency |
50/60 Hz |
| Mounting Location |
Right
Left |
| Main Device Mounting Support |
Door |
| Ue Rated Operational Voltage |
690 V AC 50/60 Hz |
| Uimp Rated Imp Wstd Voltage |
8 kV |
| Ith Cnvtl Free Air Therm Crrt |
10 A 131 °F (55 °C) |
| Ithe Cnvtl Enclosed Therm Crrt |
10 A |
| Ie Rated Operational Current |
6 A AC-15)24 V AC
6 A AC-15)48 V AC
6 A AC-15)127 V AC
3 A AC-15)240 V AC
3 A DC-13)24 V DC
1.5 A DC-13)48 V DC
0.55 A DC-13)127 V DC
0.27 A DC-13)240 V DC |
| Minimum Output Current |
10 mA |
| Minimum Output Voltage |
5 V |
| Connections - Terminals |
Control circuit screw clamp terminals 0.00 in² (2.5 mm²) flexible - without cable end |
| Tightening Torque |
Control circuit 7.08…8.85 lbf.in (0.8…1 N.m) screw clamp terminals |
| Height |
3.07 in (78 mm) |
| Width |
0.35 in (9 mm) |
| Depth |
1.72 in (43.6 mm) |
| Product Weight |
0.07 lb(US) (0.03 kg) |
| Colour |
Gray |
| Standards |
IEC 60947-3
UL 508
CSA C22.2 No 14
IEC 60947-5 |
| Product Certifications |
GL |
| IP Degree Of Protection |
IP20 IEC 60529 |
| Mechanical Robustness |
Vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6
Shocks 11 ms Ea 15 gn) IEC 60068-2-27 |
| Ambient Air Temp For Op |
-13…131 °F (-25…55 °C) |
| Fire Resistance |
1562 °F (850 °C) IEC 60695-2-11 |
| Category |
21734 - TESYS VLS DISCONNECT SWITCHES |
| Discount Schedule |
CP1 |
| GTIN |
00785901568360 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
IT |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Compliant |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
