| Range |
TeSys |
| Device Short Name |
VLS1G |
| Product Or Component Type |

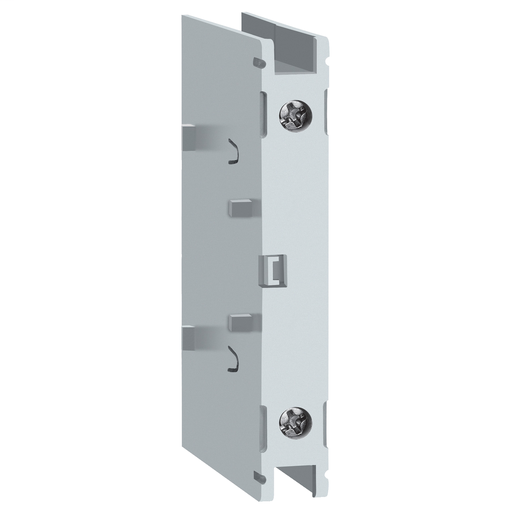

Additional earthing block |
| Performance Level |
High performance |
| Contacts Type And Composition |
Without |
| Range Compatibility |
TeSys VARIO LS VLS3P
TeSys VARIO LS VLS1P
TeSys VARIO LS VLSA |
| Network Type |
AC |
| Network Frequency |
50/60 Hz |
| Mounting Location |
Right
Left |
| Main Device Mounting Mode |
DIN rail |
| Ue Rated Operational Voltage |
690 V AC 50/60 Hz |
| Uimp Rated Imp Wstd Voltage |
8 kV |
| Ith Cnvtl Free Air Therm Crrt |
125 A 131 °F (55 °C) |
| Ithe Cnvtl Enclosed Therm Crrt |
125 A |
| Connections - Terminals |
screw clamp terminals 0.08 in² (50 mm²) solid
screw clamp terminals 0.11 in² (70 mm²) flexible - without cable end |
| Tightening Torque |
44.25…53.10 lbf.in (5…6 N.m) screw clamp terminals |
| Height |
3.94 in (100 mm) |
| Width |
0.91 in (23 mm) |
| Depth |
1.73 in (43.9 mm) |
| Product Weight |
0.24 lb(US) (0.11 kg) |
| Colour |
Gray |
| Standards |
CSA C22.2 No 4
IEC 60947-3
UL98 |
| Product Certifications |
GL |
| IP Degree Of Protection |
IP20 IEC 60529 |
| Mechanical Robustness |
Vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6
Shocks 11 ms Ea 15 gn) IEC 60068-2-27 |
| Ambient Air Temp For Op |
-13…131 °F (-25…55 °C) |
| Fire Resistance |
1760 °F (960 °C) IEC 60695-2-11 |
| Category |
21734 - TESYS VLS DISCONNECT SWITCHES |
| Discount Schedule |
CP1 |
| GTIN |
00785901571179 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
IT |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Compliant |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
