VVD2
TeSys Vario – switch disconnector – 40 A – back of enclosure

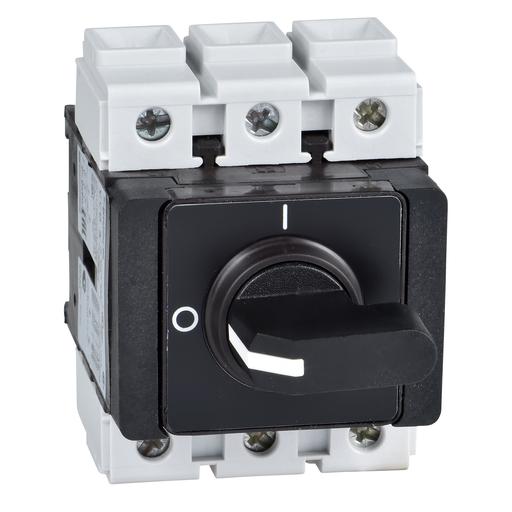

VVD2 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 40A 690V, it is used for main switching in motor applications 15KW@400V AC-23. Composed of a V2 switch body, and a black not padlockable handle, and a black 45x45mm front plate. For mounting in modular panels, it ensures IP20 front face. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Add to Quote CatalogueSpecifications
| Part Number | VVD2 |
|---|---|
| Country of Origin | CZ |
| UPC | 785901415336 |
| UPC11 | 78590141533 |
| EAN | 3389110553239 |
| Availability | N |
| Lead Time | 19 |
| UNSPSC | 39122233 |
| ECCN | EAR99 |
| HTs Code | 8536509040 |
| Prop 65 | This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | No |
| Depth | 4.17 inch |
| Height | 2.91 inch |
| Width | 2.17 inch |
| Weight | 0.55 pound |
Characteristics
| Range | TeSys |
|---|---|
| Product Name | TeSys VARIO |
| Device Short Name | VVD |
| Device Application | Preventive maintenance |
| Product Or Component Type | Switch disconnector |
| Performance Level | High performance |
| Poles Description | 3P |
| Contacts Type And Composition | 3 NO |
| Network Type | AC DC |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Direct |
| Handle Colour | Black |
| Handle Front Plate Colour | Black |
| Suitability For ISOlation | Yes |
| Rotary Handle Padlocking | Without |
| Marking | 0 - 1 |
| Mounting Support | Switch symmetrical rail Switch plate |
| Fixing Mode | By clips switch By screws switch |
| Ue Rated Operational Voltage | 690 V AC 50/60 Hz |
| Uimp Rated Imp Wstd Voltage | 8 kV |
| Ith Cnvtl Free Air Therm Crrt | 40 A |
| Ithe Cnvtl Enclosed Therm Crrt | 32 A |
| Ie Rated Operational Current | 29 A AC-23 Ue: 400 V |
| Rated Opr Power In W | 11 kW 690 V AC-3) 15 kW 690 V AC-23A) 11 kW 400...415 V AC-3) 15 kW 500 V AC-3) 18.5 kW 500 V AC-23A) 5.5 kW 230...240 V AC-3) 7.5 kW 230...240 V AC-23A) 15 kW 400...415 V AC-23A) |
| Intermittent Duty Class | 30 |
| Making Capacity ( I Rms) | 400 A 400 V AC-21A 400 A 400 V AC-22A 400 A 400 V AC-23A |
| Icm Rated Sc Making Cap | 1 kA 400 V at Ipeak |
| [Icw] Rated Short-Time Withstand Rms Current | 480 A 400 V 1 s |
| Rtd Cond Short-Cct Current | 10 kA 400 V 50 A aM 10 kA 400 V 50 A gG |
| Breaking Capacity | 320 A 400 V AC-21A) 320 A 400 V AC-22A) 320 A 400 V AC-23A) |
| Device Composition | Switch Handle |
| Mechanical Durability | 100000 cycles |
| Electrical Durability | 100000 cycles AC-21 30000 cycles DC-1...5 |
| Connections - Terminals | Power circuit screw clamp terminals 0.02 in² (10 mm²) solid Power circuit screw clamp terminals 0.01 in² (6 mm²) flexible - with cable end |
| Tightening Torque | Power circuit 18.59 lbf.in (2.1 N.m) screw clamp terminals |
| Handle Front Plate Dimension | 45 x 45 mm |
| Height | 2.91 in (74 mm) |
| Width | 2.17 in (55 mm) |
| Depth | 4.17 in (106 mm) |
| Product Weight | 0.55 lb(US) (0.25 kg) |
| Standards | IEC 60947-3 |
| Product Certifications | GL CSA UL |
| Protective Treatment | TC |
| IP Degree Of Protection | IP65 IP65 IEC 60529 |
| Mechanical Robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Ambient Air Temp For Op | -4…122 °F (-20…50 °C) |
| Fire Resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Category | 21730 - V VARIO SWITCH |
| Discount Schedule | CP1 |
| GTIN | 00785901415336 |
