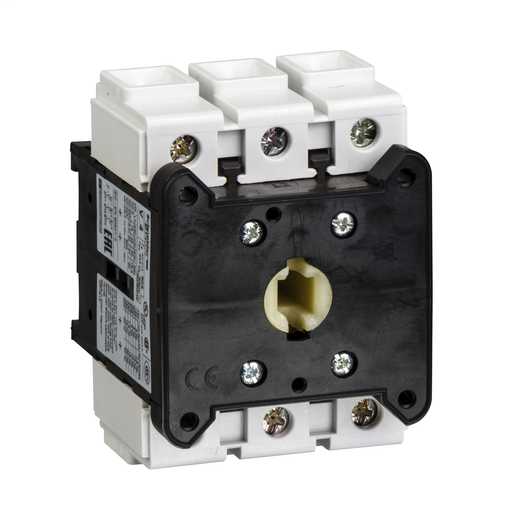

TeSys VARIO – Switch body for switch-disconnector – 3 poles – 80 A
V4 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 80A 690V, it is used in motor applications up to 30kW@400V AC-23. To be equipped with an handle and extension shaft to form a main or emergency stop switch-disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Add to Quote CatalogueSpecifications
| Part Number | V4 |
|---|---|
| Country of Origin | CZ |
| UPC | 785901305699 |
| UPC11 | 78590130569 |
| EAN | 3389110551723 |
| Availability | S |
| Lead Time | 3 |
| UNSPSC | 39122233 |
| ECCN | EAR99 |
| HTs Code | 8538908160 |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
| Depth | 2.56 inch |
| Height | 3.27 inch |
| Width | 2.36 inch |
| Weight | 1.10 pound |
Characteristics
| Range | TeSys |
|---|---|
| Product Name | TeSys VARIO |
| Device Short Name | V |
| Product Or Component Type | Switch body |
| Performance Level | High performance |
| Poles Description | 3P |
| Contacts Type And Composition | 3 NO |
| Network Type | DC AC |
| Network Frequency | 50/60 Hz |
| Suitability For ISOlation | Yes |
| Mounting Support | Plate Symmetrical rail |
| Ue Rated Operational Voltage | 690 V AC 50/60 Hz |
| Uimp Rated Imp Wstd Voltage | 8 kV |
| Ith Cnvtl Free Air Therm Crrt | 80 A |
| Ithe Cnvtl Enclosed Therm Crrt | 63 A |
| Ie Rated Operational Current | 57 A AC-23 Ue: 400 V |
| Rated Opr Power In W | 15 kW 230...240 V AC-3) 22 kW 400...415 V AC-3) 30 kW 500 V AC-3) 30 kW 690 V AC-23A) 37 kW 500 V AC-23A) 18.5 kW 690 V AC-3) 18.5 kW 230...240 V AC-23A) 30 kW 400...415 V AC-23A) |
| Intermittent Duty Class | 30 |
| Making Capacity ( I Rms) | 800 A 400 V AC-21A 800 A 400 V AC-22A 800 A 400 V AC-23A |
| Icm Rated Sc Making Cap | 2.1 kA 400 V at Ipeak |
| [Icw] Rated Short-Time Withstand Rms Current | 960 A 400 V 1 s |
| Rtd Cond Short-Cct Current | 10 kA 400 V 80 A aM 10 kA 400 V 80 A gG |
| Breaking Capacity | 640 A 400 V AC-21A) 640 A 400 V AC-22A) 640 A 400 V AC-23A) |
| Mechanical Durability | 30000 cycles |
| Electrical Durability | 30000 cycles AC-21 30000 cycles DC-1...5 |
| Connections - Terminals | Power circuit screw clamp terminals 0.02 in² (16 mm²) flexible - with cable end Power circuit screw clamp terminals 0.04 in² (25 mm²) solid |
| Tightening Torque | Power circuit 35.40 lbf.in (4 N.m) screw clamp terminals |
| Height | 3.27 in (83 mm) |
| Width | 2.36 in (60 mm) |
| Depth | 2.56 in (65 mm) |
| Product Weight | 1.10 lb(US) (0.5 kg) |
| Standards | IEC 60947-3 |
| Product Certifications | GL CSA UL |
| Protective Treatment | TC |
| IP Degree Of Protection | IP20 IEC 60529 |
| Mechanical Robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Ambient Air Temp For Op | -4…122 °F (-20…50 °C) |
| Fire Resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Category | 21730 - V VARIO SWITCH |
| Discount Schedule | CP1 |
| GTIN | 00785901305699 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pvc Free | Yes |
