KCD1PZ
TeSys VARIO / Mini VARIO – front and red rotary handle – 1 to 3 padlocking

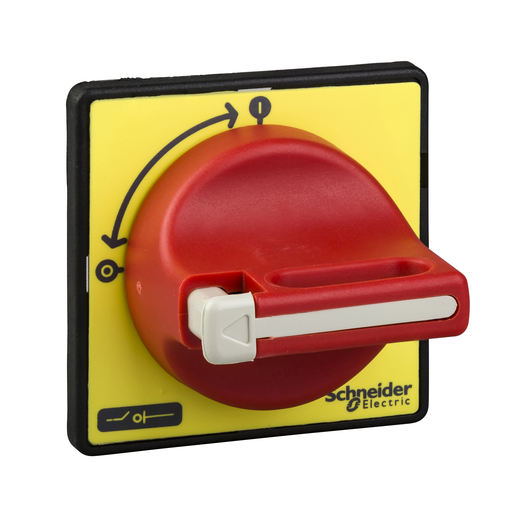

KCD1PZ is an operating handle for TeSys Vario switch-disconnector from Schneider Electric. It provides a red padlockable handle with a yellow 60x60mm front plate for mounting on door with a central fixing. It operates VN12, VN20, and V02 to V2 switch bodies directly or through a shaft extension. Intended for main and emergency stop usage, it ensures IP65 to the mounting. Front plate with I-O indicators and with a central hole fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).
Add to Quote CatalogueSpecifications
| Part Number | KCD1PZ |
|---|---|
| Country of Origin | CZ |
| UPC | 785901305569 |
| UPC11 | 78590130556 |
| EAN | 3389110725087 |
| Availability | S |
| Lead Time | 48 |
| UNSPSC | 39122217 |
| ECCN | EAR99 |
| HTs Code | 8538908160 |
| Prop 65 | This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
| Height | 2.36 inch |
| Width | 2.36 inch |
| Weight | 0.18 pound |
Characteristics
| Range | TeSys |
|---|---|
| Device Short Name | KCD1 |
| Product Or Component Type | Rotary handle |
| Product Compatibility | VN20 VN12 V02...V2 |
| Handle Colour | Red |
| Handle Front Plate Colour | Yellow |
| Rotary Handle Padlocking | 1 to 3 padlocks 0.16…0.31 in (4…8 mm) |
| Marking | 0 - 1 |
| Fixing Mode | Hole 0.89 in (22.5 mm) |
| Handle Front Plate Dimension | 60 x 60 mm |
| Height | 2.36 in (60 mm) |
| Width | 2.36 in (60 mm) |
| Product Weight | 0.18 lb(US) (0.082 kg) |
| IP Degree Of Protection | IP65 |
| Category | 21730 - V VARIO SWITCH |
| Discount Schedule | CP1 |
| GTIN | 00785901305569 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
