VBF01GE

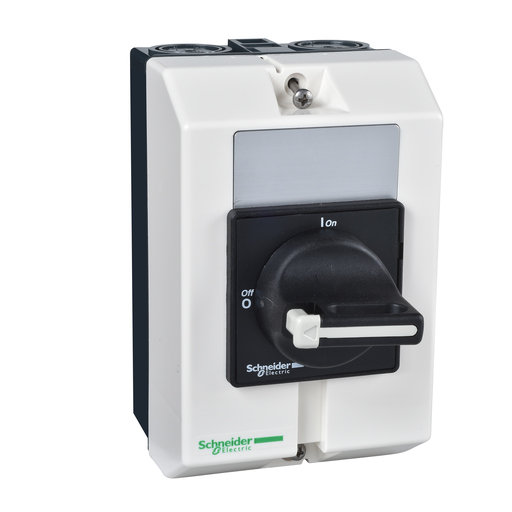

TeSys Vario enclosed, main switch disconnector, 16A, IP65
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 16A 690V, for main switching in motor applications up to 5.5kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V01 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Add to Quote CatalogueSpecifications
| Part Number | VBF01GE |
|---|---|
| Country of Origin | CZ |
| UPC | 389110201048 |
| UPC11 | 38911020104 |
| EAN | 3389110201048 |
| Availability | N |
| Lead Time | 21 |
| UNSPSC | 39122233 |
| ECCN | EAR99 |
| HTs Code | 8537109170 |
| Prop 65 | This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | No |
| Depth | 5.16 inch |
| Height | 5.75 inch |
| Width | 3.54 inch |
| Weight | 1.10 pound |
Characteristics
| Range | TeSys |
|---|---|
| Product Name | TeSys VARIO |
| Device Short Name | VBF |
| Device Application | Preventive maintenance |
| Product Or Component Type | Enclosed switch disconnector |
| Performance Level | High performance |
| Poles Description | 3P |
| Control Type | Rotary handle |
| Handle Colour | Black |
| Handle Front Plate Colour | Black |
| Rotary Handle Padlocking | 1 to 3 padlocks 0.16…0.31 in (4…8 mm) |
| Marking | 0 - 1 |
| Ue Rated Operational Voltage | 690 V AC |
| Uimp Rated Imp Wstd Voltage | 8 kV |
| [Ithe] Conventional Enclosed Thermal Current | 16 A |
| Ie Rated Operational Current | 11 A AC-23A)400 V |
| Rated Opr Power In W | 5.5 kW 400 V AC-23) 4 kW 400 V AC-3) |
| Intermittent Duty Class | 30 |
| Making Capacity ( I Rms) | 200 A 400 V AC-21A 200 A 400 V AC-22A 200 A 400 V AC-23A |
| Icm Rated Sc Making Cap | 1 kA 400 V at Ipeak |
| [Icw] Rated Short-Time Withstand Rms Current | 300 A 400 V 1 s |
| Rtd Cond Short-Cct Current | 10 kA 400 V 20 A aM 10 kA 400 V 20 A gG |
| Breaking Capacity | 200 A 400 V AC-21A) 200 A 400 V AC-22A) 200 A 400 V AC-23A) |
| Mechanical Durability | 100000 cycles |
| Electrical Durability | 100000 cycles AC-21 30000 cycles DC-1...5 |
| Environmental Characteristic | Standard environment |
| Suitability For ISOlation | Yes |
| Connections - Terminals | screw clamp terminals 0.02 in² (10 mm²) solid screw clamp terminals 0.01 in² (6 mm²) flexible - with cable end |
| Tightening Torque | 18.59 lbf.in (2.1 N.m) screw clamp terminals |
| Fire Resistance | 1760 °F (960 °C) IEC 60595-2-1 |
| Handle Front Plate Dimension | 60 x 60 mm |
| Height | 5.75 in (146 mm) |
| Width | 3.54 in (90 mm) |
| Depth | 5.16 in (131 mm) |
| Product Weight | 1.10 lb(US) (0.5 kg) |
| Standards | IEC 60947-4-1 IEC 60204 |
| Protective Treatment | TC |
| IP Degree Of Protection | IP65 IEC 60529 |
| Mechanical Robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Ambient Air Temp For Op | -4…122 °F (-20…50 °C) |
| Category | 21730 - V VARIO SWITCH |
| Discount Schedule | CP1 |
| GTIN | 03389110201048 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
