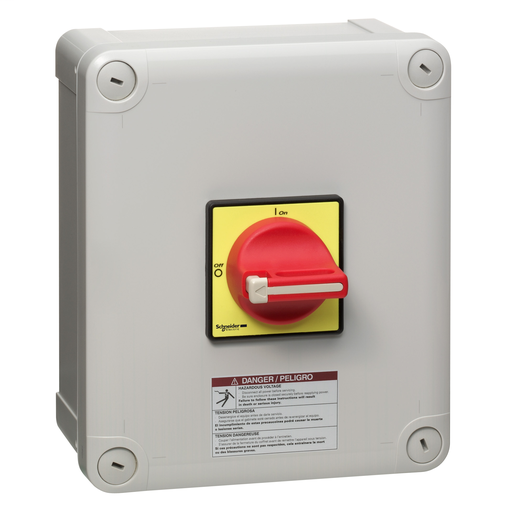

VC4GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 40HP@600V. It provides an IP65 / NEMA type 12 enclosure, V4 Vario switch disconnector and red & yellow operator. VC4GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 40HP@600V. It includes a V4 Vario switch disconnector rated 63A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V4 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n° 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 2 add-on poles to the switch body , main (VZ4), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).
Add to Quote Catalogue| Part Number | VC4GUN |
|---|---|
| Country of Origin | CZ |
| UPC | 785901676331 |
| UPC11 | 78590167633 |
| EAN | 3389119413206 |
| Availability | S |
| Lead Time | 37 |
| UNSPSC | 39122233 |
| ECCN | EAR99 |
| HTs Code | 8536509065 |
| Prop 65 | This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
| Depth | 5.20 inch |
| Height | 7.60 inch |
| Width | 6.46 inch |
| Weight | 2.05 pound |
| Range | TeSys |
|---|---|
| Product Name | TeSys VARIO |
| Device Short Name | VC-GUN |
| Product Or Component Type | Enclosed emergency stop switch disconnector |
| Performance Level | High performance |
| Poles Description | 3P |
| Control Type | Rotary handle |
| Handle Colour | Red |
| Handle Front Plate Colour | Yellow |
| Rotary Handle Padlocking | 1 to 3 padlocks 0.16…0.31 in (4…8 mm) |
| Marking | 0 - 1 |
| Ue Rated Operational Voltage | 690 V AC 50/60 Hz |
| Uimp Rated Imp Wstd Voltage | 8 kV |
| [Ithe] Conventional Enclosed Thermal Current | 63 A |
| Ie Rated Operational Current | 57 A AC-23A)400 V |
| Rated Opr Power In W | 30 kW 400 V AC-23) 22 kW 400 V AC-3) |
| Intermittent Duty Class | 30 |
| Making Capacity ( I Rms) | 800 A 400 V AC-21A 800 A 400 V AC-22A 800 A 400 V AC-23A |
| Icm Rated Sc Making Cap | 2.1 kA 400 V at Ipeak |
| [Ith] Conventional Free Air Thermal Current | 63.0 A IEC 690 V 63 A UL 600 V |
| Rated Power In Hp | 15 hp 240 V, UL 30 hp 480 V, UL 40 hp 600 V, UL |
| [Icw] Rated Short-Time Withstand Rms Current | 960 A 400 V 1 s |
| Rtd Cond Short-Cct Current | 10 kA 400 V 80 A aM 10 kA 400 V 80 A gG |
| Breaking Capacity | 640 A 400 V AC-21A) 640 A 400 V AC-22A) 640 A 400 V AC-23A) |
| Mechanical Durability | 30000 cycles |
| Electrical Durability | 30000 cycles AC-21 30000 cycles DC-1...5 |
| Environmental Characteristic | Standard environment |
| Suitability For ISOlation | Yes |
| Connections - Terminals | screw clamp terminals 0.04 in² (25 mm²) solid - with cable end screw clamp terminals 0.02 in² (16 mm²) flexible |
| Tightening Torque | 35.40 lbf.in (4 N.m) screw clamp terminals |
| Fire Resistance | 1760 °F (960 °C) IEC 60595-2-1 |
| Handle Front Plate Dimension | 60 x 60 mm |
| Height | 7.60 in (193 mm) |
| Width | 6.46 in (164 mm) |
| Depth | 5.20 in (132 mm) |
| Product Weight | 2.05 lb(US) (0.93 kg) |
| Standards | UL 508 CSA C22.2 No 14 IEC 60947-4-1 IEC 60204 |
| Protective Treatment | TC |
| IP Degree Of Protection | IP65 IEC 60529 |
| Nema Degree Of Protection | NEMA 12 |
| Mechanical Robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Ambient Air Temp For Op | -4…122 °F (-20…50 °C) |
| Category | 21730 - V VARIO SWITCH |
| Discount Schedule | CP1 |
| GTIN | 00785901676331 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
