VCFN20GE
TeSys Vario enclosed, emergency stop switch disconnector, 16A, IP55

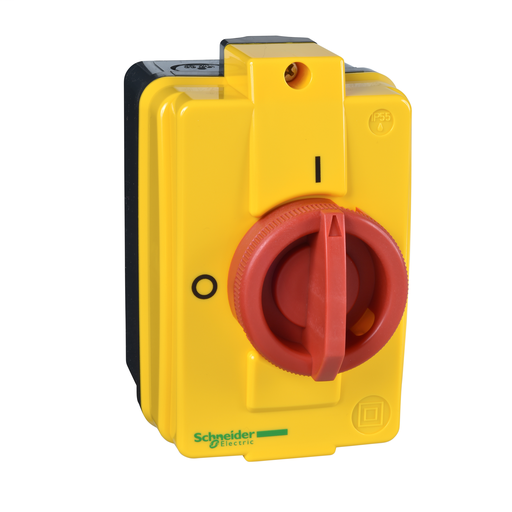

VCFN20GE is a direct-on-line TeSys enclosed starter from Schneider Electric. Enclosure fitted with a yellow cover, red padlockable rotary handle, and a 3-pole VN20 switch body with 2 possible add-on module attachments. Rated The 16A 690V, it is used for main and emergency stop switching in motor applications up to 5.5kW@400V AC-23. Cabling through 2 cable glands on top and bottom, it provides IP55 protection. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Add to Quote CatalogueSpecifications
| Part Number | VCFN20GE |
|---|---|
| Country of Origin | CZ |
| UPC | 785901770510 |
| UPC11 | 78590177051 |
| EAN | 3389110759990 |
| Availability | N |
| Lead Time | 33 |
| UNSPSC | 39122233 |
| ECCN | EAR99 |
| HTs Code | 8536509025 |
| Prop 65 | This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
| Depth | 4.17 inch |
| Height | 5.16 inch |
| Width | 3.25 inch |
| Weight | 0.93 pound |
Characteristics
| Range | TeSys |
|---|---|
| Product Name | TeSys Mini-VARIO |
| Device Short Name | VCFN |
| Product Or Component Type | Emergency stop switch disconnector |
| Performance Level | Standard |
| Poles Description | 3P |
| Control Type | Rotary handle |
| Handle Colour | Red |
| Handle Front Plate Colour | Yellow |
| Rotary Handle Padlocking | 1 to 3 padlocks 0.16…0.31 in (4…8 mm) |
| Marking | 0 - 1 |
| Ue Rated Operational Voltage | 690 V AC |
| Uimp Rated Imp Wstd Voltage | 8 kV |
| Ithe Cnvtl Enclosed Therm Crrt | 16 A |
| Ie Rated Operational Current | 11 A AC-23A)400 V |
| Rated Opr Power In W | 5.5 kW 400 V AC-23) 4 kW 400 V AC-3) |
| Intermittent Duty Class | 30 |
| Making Capacity ( I Rms) | 200 A 400 V AC-21A 200 A 400 V AC-22A 200 A 400 V AC-23A |
| Icm Rated Sc Making Cap | 0.5 kA 400 V at Ipeak |
| [Icw] Rated Short-Time Withstand Rms Current | 140 A 400 V 1 s |
| Rtd Cond Short-Cct Current | 6 kA 400 V 20 A aM 6 kA 400 V 20 A gG |
| Breaking Capacity | 200 A 400 V AC-21A) 200 A 400 V AC-22A) 200 A 400 V AC-23A) |
| Mechanical Durability | 50000 cycles |
| Electrical Durability | 30000 cycles DC-1...5 50000 cycles AC-21 |
| Suitability For ISOlation | Yes |
| Connections - Terminals | Control circuit connector 0.01 in² (4 mm²) flexible with cable end Control circuit connector 0.01 in² (4 mm²) solid |
| Tightening Torque | Control circuit 6.20 lbf.in (0.7 N.m) connector |
| Fire Resistance | 1760 °F (960 °C) IEC 60595-2-1 |
| Handle Front Plate Dimension | 60 x 60 mm |
| Height | 5.16 in (131 mm) |
| Width | 3.25 in (82.5 mm) |
| Depth | 4.17 in (106 mm) |
| Product Weight | 0.93 lb(US) (0.422 kg) |
| Standards | IEC 60947-4-1 |
| Protective Treatment | TC |
| Mechanical Robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Ambient Air Temp For Op | -4…122 °F (-20…50 °C) |
| Category | 21730 - V VARIO SWITCH |
| Discount Schedule | CP1 |
| GTIN | 00785901770510 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
