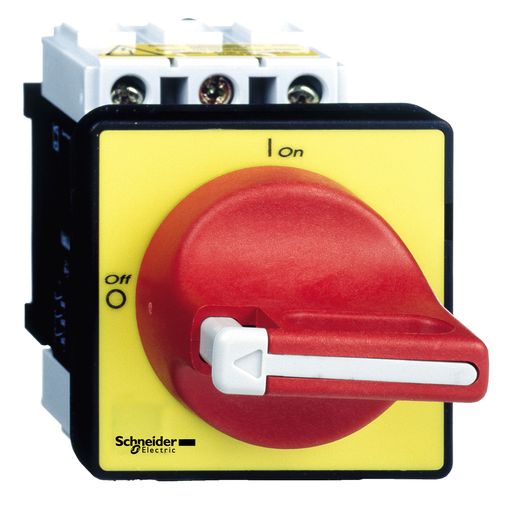

TeSys Vario – emergency stop switch disconnector – 40 A – on door
VCF2 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 15kW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF2 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 15kW@400V AC-23. It consists of a V2 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V2 and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ2), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).
Add to Quote CatalogueSpecifications
| Part Number | VCF2 |
|---|---|
| Country of Origin | CZ |
| UPC | 785901728122 |
| UPC11 | 78590172812 |
| EAN | 3389110449358 |
| Availability | S |
| Lead Time | 3 |
| UNSPSC | 39122233 |
| ECCN | EAR99 |
| HTs Code | 8536509025 |
| Prop 65 | This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
| Height | 2.91 inch |
| Width | 2.36 inch |
| Weight | 0.55 pound |
Characteristics
| Range | TeSys |
|---|---|
| Product Name | TeSys VARIO |
| Device Short Name | VCF |
| Product Or Component Type | Emergency stop switch disconnector |
| Performance Level | High performance |
| Poles Description | 3P |
| Contacts Type And Composition | 3 NO |
| Network Type | AC DC |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Direct |
| Handle Colour | Red |
| Handle Front Plate Colour | Yellow |
| Suitability For ISOlation | Yes |
| Rotary Handle Padlocking | 1 to 3 padlocks 0.16…0.31 in (4…8 mm) |
| Marking | 0 - 1 |
| Mounting Support | Handle door Switch door |
| Fixing Mode | By 4 screws handle |
| Ue Rated Operational Voltage | 690 V AC 50/60 Hz |
| Uimp Rated Imp Wstd Voltage | 8 kV |
| Ith Cnvtl Free Air Therm Crrt | 40 A |
| Ithe Cnvtl Enclosed Therm Crrt | 32 A |
| Ie Rated Operational Current | 29 A AC-23 Ue: 400 V |
| Rated Opr Power In W | 11 kW 690 V AC-3) 15 kW 690 V AC-23A) 11 kW 400...415 V AC-3) 15 kW 500 V AC-3) 18.5 kW 500 V AC-23A) 5.5 kW 230...240 V AC-3) 7.5 kW 230...240 V AC-23A) 15 kW 400...415 V AC-23A) |
| Intermittent Duty Class | 30 |
| Making Capacity ( I Rms) | 400 A 400 V AC-21A 400 A 400 V AC-22A 400 A 400 V AC-23A |
| Icm Rated Sc Making Cap | 1 kA 400 V at Ipeak |
| [Icw] Rated Short-Time Withstand Rms Current | 480 A 400 V 1 s |
| Rtd Cond Short-Cct Current | 10 kA 400 V 50 A aM 10 kA 400 V 50 A gG |
| Breaking Capacity | 320 A 400 V AC-21A) 320 A 400 V AC-22A) 320 A 400 V AC-23A) |
| Device Composition | Switch Handle |
| Mechanical Durability | 100000 cycles |
| Electrical Durability | 100000 cycles AC-21 30000 cycles DC-1...5 |
| Connections - Terminals | Power circuit screw clamp terminals 0.02 in² (10 mm²) solid Power circuit screw clamp terminals 0.01 in² (6 mm²) flexible - with cable end |
| Tightening Torque | Power circuit 18.59 lbf.in (2.1 N.m) screw clamp terminals |
| Handle Front Plate Dimension | 60 x 60 mm |
| Height | 2.91 in (74 mm) |
| Width | 2.36 in (60 mm) |
| Product Weight | 0.55 lb(US) (0.25 kg) |
| Standards | IEC 60947-3 |
| Product Certifications | UL CCC GL CSA |
| Protective Treatment | TC |
| IP Degree Of Protection | IP20 IEC 60529 IP65 |
| Mechanical Robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Ambient Air Temp For Op | -4…122 °F (-20…50 °C) |
| Fire Resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Category | 21730 - V VARIO SWITCH |
| Discount Schedule | CP1 |
| GTIN | 00785901728122 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
