LUFW10
TeSys U – LUF function block thermal overload alarm 1 NO

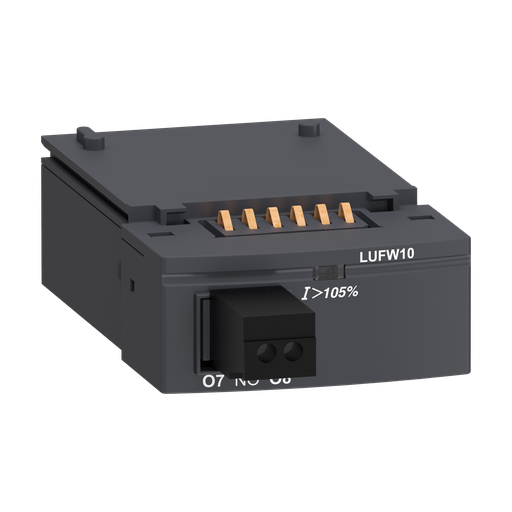

TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload alarm. It provides 1NO instantaneous contact rated 2A 230V AC / 24V DC, a LED status on front panel. The alarm is activated when the thermal overload state exceeds 88% of thermal tripping state, with an hysteresis of 5% between activation and deactivation. It is powered by the control unit. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Add to Quote CatalogueSpecifications
| Part Number | LUFW10 |
|---|---|
| Country of Origin | FR |
| UPC | 785901412601 |
| UPC11 | 78590141260 |
| EAN | 3389110365511 |
| Availability | N |
| Lead Time | 27 |
| UNSPSC | 39121521 |
| ECCN | EAR99 |
| HTs Code | 8531809051 |
| RoHS Compliant | Yes |
| Discount Schedule | I11 |
| Return Indicator | No |
| Weight | 0.12 pound |
Characteristics
| Range | TeSys |
|---|---|
| Device Short Name | LUF |
| Product Or Component Type | Function module |
| Product Compatibility | LUCC LUCB LUCD |
| Mounting Mode | Plug-in |
| Mounting Location | Front side |
| Main Function Available | Thermal overload alarm |
| Auxiliary Contact Composition | 1 NO |
| Communication Of Faults | LED front panel |
| Discrete Output Function | 1 NO AC-15) 230 V 400 VA 100000 cycles 1 NO DC-13) 24 V 50 W 100000 cycles |
| Ith Cnvtl Free Air Therm Crrt | 2 A 158 °F (70 °C) |
| Short-Circuit Protection | 2 A fuse gG IEC 60947-5-1 |
| Connection Pitch | 0.20 in (5.08 mm) |
| Connections - Terminals | screw clamp terminals 2 0.00…0.00 in² (0.2…1 mm²) rigid without cable end screw clamp terminals 2 0.00…0.00 in² (0.25…1 mm²) flexible with cable end screw clamp terminals 2 0.00…0.00 in² (0.5…1 mm²) flexible with cable end screw clamp terminals 1 0.00…0.00 in² (0.2…1.5 mm²) flexible without cable end screw clamp terminals 1 0.00…0.00 in² (0.2…1.5 mm²) rigid without cable end screw clamp terminals 1 0.00…0.00 in² (0.25…1.5 mm²) flexible with cable end screw clamp terminals 2 0.00…0.00 in² (0.2…1 mm²) flexible without cable end |
| Associated Cable Type | AWG24...AWG16 |
| Tightening Torque | 4.43…5.31 lbf.in (0.5…0.6 N.m) 0.14 in (3.5 mm) flat |
| Product Weight | 0.12 lb(US) (0.055 kg) |
| Category | 22399 - TESYS U, ACCESSORIES |
| Discount Schedule | I11 |
| GTIN | 00785901412601 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
