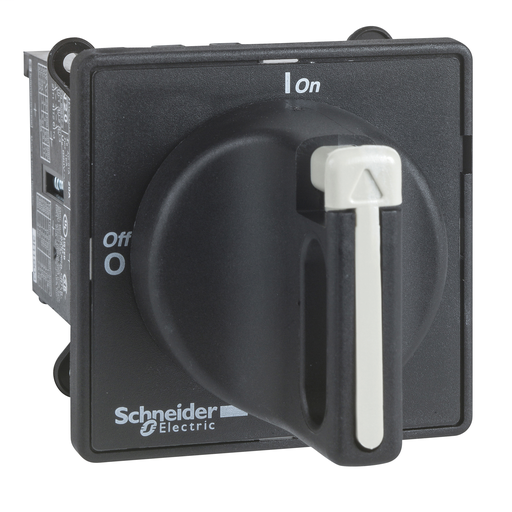

TeSys Mini-Vario – switch disconnector – 20 A – on door
VBDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 5.5kW@400V AC-23. For door mounting with a single fixing, it provides a black handle with IP65 protection. VBDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 5.5kW@400V AC-23. It consists of a VZ20 Vario switch body and a padlockable black & grey operator to be mounted on door with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body VZ20 and a black & grey operator, for main switching, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , main (VZN12), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).
Add to Quote CatalogueSpecifications
| Part Number | VBDN20 |
|---|---|
| Country of Origin | CZ |
| UPC | 785901759898 |
| UPC11 | 78590175989 |
| EAN | 3389110759891 |
| Availability | N |
| Lead Time | 21 |
| UNSPSC | 39122233 |
| ECCN | EAR99 |
| HTs Code | 8536509040 |
| Prop 65 | This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | No |
| Height | 2.36 inch |
| Width | 2.36 inch |
| Weight | 0.39 pound |
Characteristics
| Range | TeSys |
|---|---|
| Product Name | TeSys Mini-VARIO |
| Device Short Name | VBDN |
| Product Or Component Type | Switch disconnector |
| Performance Level | Standard |
| Poles Description | 3P |
| Contacts Type And Composition | 3 NO |
| Network Type | DC AC |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Direct |
| Handle Colour | Black |
| Handle Front Plate Colour | Black |
| Rotary Handle Padlocking | 1 to 3 padlocks 0.16…0.31 in (4…8 mm) |
| Marking | 0 - 1 |
| Mounting Support | Handle door Switch door |
| Fixing Mode | Hole 0.89 in (22.5 mm) handle |
| Ue Rated Operational Voltage | 690 V AC 50/60 Hz |
| Uimp Rated Imp Wstd Voltage | 6 kV |
| Ith Cnvtl Free Air Therm Crrt | 20 A |
| Ithe Cnvtl Enclosed Therm Crrt | 16 A |
| Ie Rated Operational Current | 11 A AC-23)400 V |
| Rated Opr Power In W | 4 kW 230...240 V AC-23A) 5.5 kW 400...415 V AC-23A) 7.5 kW 500 V AC-23A) 11 kW 690 V AC-23A) 3 kW 230...240 V AC-3) 4 kW 400...415 V AC-3) 5.5 kW 500 V AC-3) 5.5 kW 690 V AC-3) |
| Intermittent Duty Class | 30 |
| Making Capacity ( I Rms) | 200 A 400 V AC-21A 200 A 400 V AC-22A 200 A 400 V AC-23A |
| Icm Rated Sc Making Cap | 0.5 kA 400 V at Ipeak |
| [Icw] Rated Short-Time Withstand Rms Current | 140 A 400 V 1 s |
| Rtd Cond Short-Cct Current | 6 kA 400 V 20 A aM 6 kA 400 V 20 A gG |
| Breaking Capacity | 200 kA 400 V AC-21A) 200 kA 400 V AC-22A) 200 kA 400 V AC-23A) |
| Device Composition | Handle Switch |
| Mechanical Durability | 50000 cycles |
| Electrical Durability | 30000 cycles DC-1...5 50000 cycles AC-21 |
| Suitability For ISOlation | Yes |
| Connections - Terminals | Power circuit screw clamp terminals 0.01 in² (4 mm²) flexible - with cable end Power circuit screw clamp terminals 0.01 in² (4 mm²) solid |
| Tightening Torque | Power circuit 6.20 lbf.in (0.7 N.m) screw clamp terminals |
| Handle Front Plate Dimension | 60 x 60 mm |
| Height | 2.36 in (60 mm) |
| Width | 2.36 in (60 mm) |
| Product Weight | 0.39 lb(US) (0.177 kg) |
| Standards | IEC 60947-3 |
| Product Certifications | CSA UL CCC GL |
| Protective Treatment | TC |
| IP Degree Of Protection | IP65 |
| Mechanical Robustness | Shocks 11 ms 15 gn) IEC 60068-2-27 Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 |
| Ambient Air Temp For Op | -4…122 °F (-20…50 °C) |
| Fire Resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Category | 21730 - V VARIO SWITCH |
| Discount Schedule | CP1 |
| GTIN | 00785901759898 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
