TeSys Mini-Vario – emergency stop switch disconnector – 20 A – back of enclosure

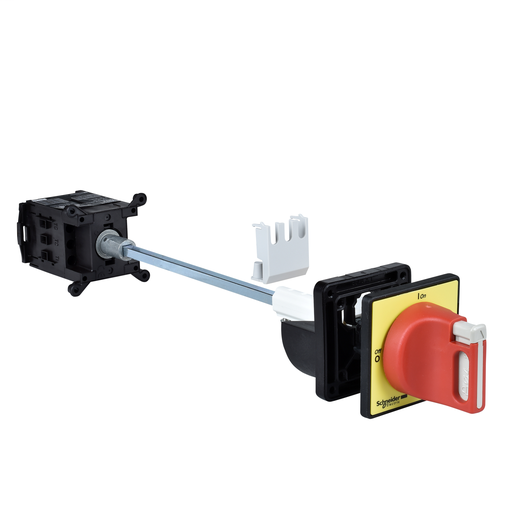

VCCDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 5.5kW@400V AC-23. For enclosure back mounting, it provides a red & yellow operator and extension shaft with IP65 protection. VCCDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 5.5kW@400V AC-23. It consists of a VZ20 Vario switch body to be mounted on the back of an enclosure, an extension shaft, and a padlockable red & yellow operator with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for back mounting. Composed with a switch body VZ20, an extension shaft and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , main (VZN20), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).
Add to Quote CatalogueSpecifications
| Part Number | VCCDN20 |
|---|---|
| Country of Origin | CZ |
| UPC | 785901759959 |
| UPC11 | 78590175995 |
| EAN | 3389110759952 |
| Availability | N |
| Lead Time | 33 |
| UNSPSC | 39122233 |
| ECCN | EAR99 |
| HTs Code | 8536509025 |
| Prop 65 | This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
| Height | 2.36 inch |
| Width | 2.36 inch |
| Weight | 0.74 pound |
Characteristics
| Range | TeSys |
|---|---|
| Product Name | TeSys Mini-VARIO |
| Device Short Name | VCCDN |
| Product Or Component Type | Emergency stop switch disconnector |
| Performance Level | Standard |
| Poles Description | 3P |
| Contacts Type And Composition | 3 NO |
| Network Type | DC AC |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Extended |
| Handle Colour | Red |
| Handle Front Plate Colour | Yellow |
| Rotary Handle Padlocking | 1 to 3 padlocks 0.16…0.31 in (4…8 mm) |
| Marking | 0 - 1 |
| Mounting Support | Handle door Switch symmetrical rail |
| Fixing Mode | Hole 0.89 in (22.5 mm) handle By clips switch |
| Ith Cnvtl Free Air Therm Crrt | 20 A |
| Ithe Cnvtl Enclosed Therm Crrt | 16 A |
| Ie Rated Operational Current | 11 A AC-23)400 V |
| Rated Opr Power In W | 4 kW 230...240 V AC-23A) 5.5 kW 400...415 V AC-23A) 7.5 kW 500 V AC-23A) 11 kW 690 V AC-23A) 3 kW 230...240 V AC-3) 4 kW 400...415 V AC-3) 5.5 kW 500 V AC-3) 5.5 kW 690 V AC-3) |
| Intermittent Duty Class | 30 |
| Making Capacity ( I Rms) | 200 A 400 V AC-21A 200 A 400 V AC-22A 200 A 400 V AC-23A |
| Icm Rated Sc Making Cap | 0.5 kA 400 V at Ipeak |
| [Icw] Rated Short-Time Withstand Rms Current | 140 A 400 V 1 s |
| Rtd Cond Short-Cct Current | 6 kA 400 V 20 A aM 6 kA 400 V 20 A gG |
| Breaking Capacity | 200 kA 400 V AC-21A) 200 kA 400 V AC-22A) 200 kA 400 V AC-23A) |
| Device Composition | Shaft extension Handle Switch |
| Mechanical Durability | 50000 cycles |
| Electrical Durability | 30000 cycles DC-1...5 50000 cycles AC-21 |
| Suitability For ISOlation | Yes |
| Connections - Terminals | Power circuit screw clamp terminals 0.01 in² (4 mm²) flexible - with cable end Power circuit screw clamp terminals 0.01 in² (4 mm²) solid |
| Tightening Torque | Power circuit 6.20 lbf.in (0.7 N.m) screw clamp terminals |
| Handle Front Plate Dimension | 60 x 60 mm |
| Height | 2.36 in (60 mm) |
| Width | 2.36 in (60 mm) |
| Product Weight | 0.74 lb(US) (0.334 kg) |
| Standards | IEC 60947-3 |
| Product Certifications | GL CSA CCC UL |
| Protective Treatment | TC |
| IP Degree Of Protection | IP65 |
| Mechanical Robustness | Shocks 11 ms 15 gn) IEC 60068-2-27 Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 |
| Category | 21730 - V VARIO SWITCH |
| Discount Schedule | CP1 |
| GTIN | 00785901759959 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
