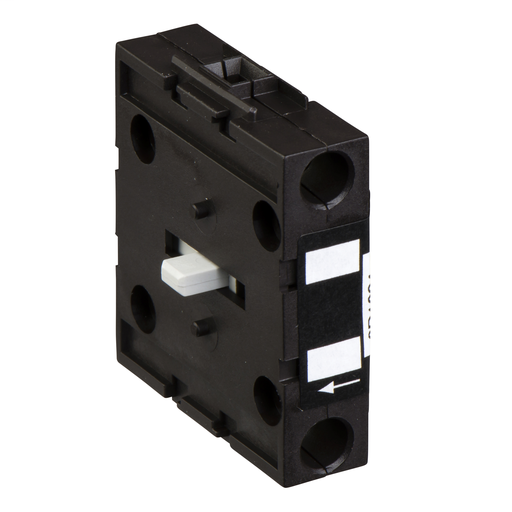

VZN20 is an add-on main pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 20A 690V, compatible with switch types VN20. VZN20 is an add-on main pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 20A 690V, compatible with switch types VN20. A maximum of 2 VZN20 main pole modules can be attached to a switch body VN20. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Add-on main pole module for Vario switch disconnector assemblies. Same AC and DC ratings as VN20 switch bodies. Other add-on modules available for VN20 switch bodies , neutral (VZN11), earthing (VZN14), auxiliary contacts (VZN05, VZN06).
Add to Quote Catalogue| Part Number | VZN20 |
|---|---|
| Country of Origin | CZ |
| UPC | 785901303947 |
| UPC11 | 78590130394 |
| EAN | 3389110760033 |
| Availability | N |
| Lead Time | 21 |
| UNSPSC | 39122233 |
| ECCN | EAR99 |
| HTs Code | 8538908140 |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | No |
| Depth | 1.54 inch |
| Height | 1.79 inch |
| Width | 0.47 inch |
| Weight | 0.04 pound |
| Range | TeSys |
|---|---|
| Device Short Name | VZN |
| Product Or Component Type | Additional pole |
| Performance Level | Standard |
| Poles Description | 1P |
| Contacts Type And Composition | 1 NO |
| Product Compatibility | VN20 |
| Network Type | DC AC |
| Network Frequency | 50/60 Hz |
| Mounting Location | Right Left |
| Range Compatibility | TeSys VARIO VCFN switch disconnector |
| Ue Rated Operational Voltage | 690 V AC 50/60 Hz |
| Uimp Rated Imp Wstd Voltage | 6 kV |
| Ith Cnvtl Free Air Therm Crrt | 20 A |
| Ithe Cnvtl Enclosed Therm Crrt | 16 A |
| Mechanical Durability | 50000 cycles |
| Electrical Durability | 30000 cycles DC-1...5 50000 cycles AC-21 |
| Suitability For ISOlation | Yes |
| Connections - Terminals | Power circuit screw clamp terminals 0.01 in² (4 mm²) flexible - with cable end Power circuit screw clamp terminals 0.01 in² (4 mm²) solid |
| Tightening Torque | Power circuit 6.20 lbf.in (0.7 N.m) screw clamp terminals |
| Height | 1.79 in (45.5 mm) |
| Width | 0.47 in (12 mm) |
| Depth | 1.54 in (39 mm) |
| Product Weight | 0.04 lb(US) (0.02 kg) |
| Standards | IEC 60947-3 |
| Product Certifications | GL UL CSA |
| Protective Treatment | TC |
| IP Degree Of Protection | IP20 IEC 60529 |
| Mechanical Robustness | Shocks 11 ms 15 gn) IEC 60068-2-27 Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 |
| Ambient Air Temp For Op | -4…122 °F (-20…50 °C) |
| Fire Resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Category | 21730 - V VARIO SWITCH |
| Discount Schedule | CP1 |
| GTIN | 00785901303947 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
