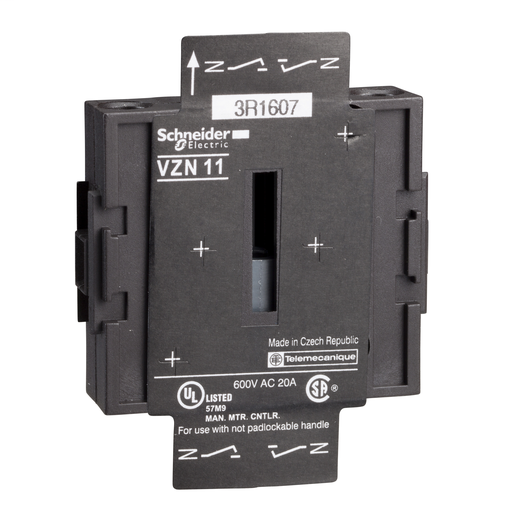

TeSys Mini-VARIO – additional neutral block – 20 A – for VN12, VN20
VZN11 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 12A to 20A 690V, compatible with switch types VN12 and VN20. VZN11 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 12A to 20A 690V, compatible with switch types VN12 and VN20. It behaves as an “early make” and “late break” contact. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Add-on neutral pole module for Vario switch disconnector assemblies. Rated 12A to 20A 690VAC to be used with VN12 and VN20 switch bodies. Other add-on modules available for VN12 and VN20 switch bodies , main poles (VZN12 and VZN20), earthing (VZN14), auxiliary contacts (VZN05, VZN06).
Add to Quote CatalogueSpecifications
| Part Number | VZN11 |
|---|---|
| Country of Origin | CZ |
| UPC | 785901303954 |
| UPC11 | 78590130395 |
| EAN | 3389110760019 |
| Availability | N |
| Lead Time | 21 |
| UNSPSC | 39122233 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | No |
| Depth | 1.54 inch |
| Height | 1.79 inch |
| Width | 0.47 inch |
| Weight | 0.04 pound |
Characteristics
| Range | TeSys |
|---|---|
| Device Short Name | VZN |
| Product Or Component Type | Additional neutral block |
| Performance Level | Standard |
| Poles Description | 1N |
| Contacts Type And Composition | 1 NO |
| Contact Operation | Early make, late break |
| Product Compatibility | VN12 VN20 |
| Network Type | AC DC |
| Network Frequency | 50/60 Hz |
| Mounting Location | Right |
| Range Compatibility | TeSys VARIO VCFN switch disconnector |
| Ue Rated Operational Voltage | 690 V AC 50/60 Hz |
| Uimp Rated Imp Wstd Voltage | 6 kV |
| Ith Cnvtl Free Air Therm Crrt | 20 A |
| Ithe Cnvtl Enclosed Therm Crrt | 16 A |
| Mechanical Durability | 50000 cycles |
| Electrical Durability | 30000 cycles DC-1...5 50000 cycles AC-21 |
| Connections - Terminals | screw clamp terminals 0.01 in² (4 mm²) flexible - with cable end screw clamp terminals 0.01 in² (4 mm²) solid |
| Tightening Torque | 6.20 lbf.in (0.7 N.m) screw clamp terminals |
| Height | 1.79 in (45.5 mm) |
| Width | 0.47 in (12 mm) |
| Depth | 1.54 in (39 mm) |
| Product Weight | 0.04 lb(US) (0.02 kg) |
| Standards | IEC 60947-3 |
| Product Certifications | CSA GL UL |
| Protective Treatment | TC |
| IP Degree Of Protection | IP20 IEC 60529 |
| Mechanical Robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 15 gn) IEC 60068-2-27 |
| Ambient Air Temp For Op | -4…122 °F (-20…50 °C) |
| Fire Resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Category | 21730 - V VARIO SWITCH |
| Discount Schedule | CP1 |
| GTIN | 00785901303954 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pvc Free | Yes |
| Warranty | 18 months |
