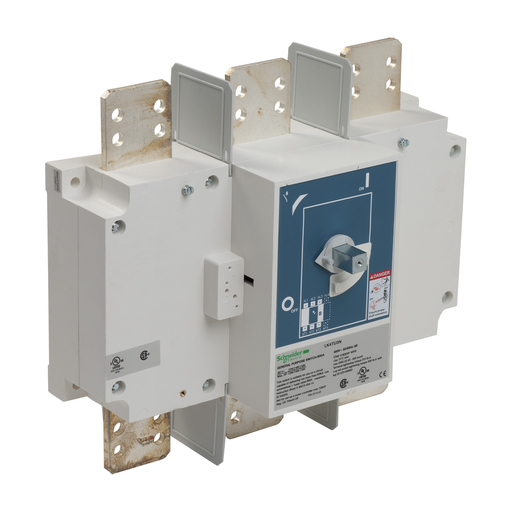

TeSys LK – disconnect switch -3P – 800A – AC
LK4TU3N
TeSys LK – disconnect switch -3P – 800A – AC
Specifications
Part Number LK4TU3N
Country of Origin FR
UPC 785901546887
UPC11 78590154688
EAN 3606480510489
Availability N
Lead Time 35
UNSPSC 39122233
ECCN EAR99
HTs Code 8536509065
Prop 65 This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov
RoHS Compliant Yes
Discount Schedule I11
Return Indicator No
Depth 5.51 inch
Height 12.60 inch
Width 14.57 inch
Characteristics
Range TeSys
Product Name TeSys LK
Product Or Component Type Disconnect Switch
Disconnector Device Type Non-fusible disconnect switch
Suitability For ISOlation Yes
Poles Description 3P
Network Type AC
Network Frequency 50/60 Hz
Ie Rated Operational Current 800 A400 V AC AC-22A IEC 800 A400 V AC AC-23A IEC 630 A690 V AC AC-22A IEC 400 A690 V AC AC-23A IEC 800 A CSA 800 A UL
Ue Rated Operational Voltage 600 V AC 50/60 Hz
Ui Rated Insulation Voltage 1000 V
Control Type Rotary handle
Type Of Operating Handle External right side External frontal
Mounting Support Plate
Uimp Rated Imp Wstd Voltage 12 kV IEC
Rated Power In W 450 kW 400 V 560 kW 500 V 400 kW 690 V
Rated Power In Hp 200 hp 240 V 480 A AC 500 hp 480 V 477 A AC 500 hp 600 V 336 A AC
Icw Rated Short-Time Wstd Crrt 75 kA
Mechanical Durability 3500 cycles
Electrical Durability 500 cycles
Connections - Terminals lugs-ring terminals 2 0.05 in² (34 mm²) bars 2 40 x 5 mm
Height 12.60 in (320 mm)
Width 14.57 in (370 mm)
Depth 5.51 in (140 mm)
Standards CSA C22.2 No 4 IEC 60947-3 UL98
Product Certifications CE CSA UL
Category 22640 - IEC DISCONNECT-GS1,LK3
Discount Schedule I11
GTIN 00785901546887
Nbr. Of Units In Pkg. 1
Country Of Origin FR
REACh Free Of SVHC Yes
EU RoHs Directive Compliant
Toxic Heavy Metal Free Yes
Mercury Free Yes
Warranty 18 months
