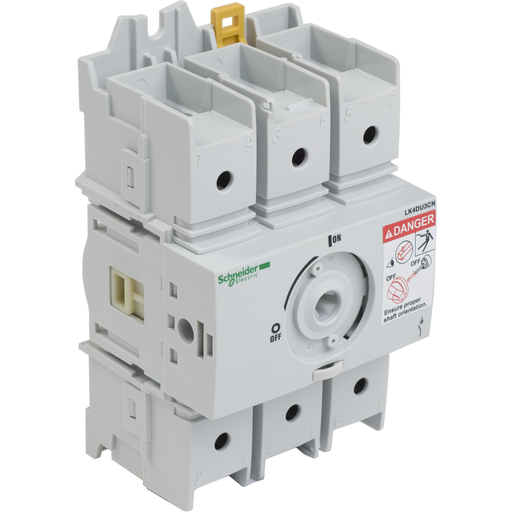

TeSys LK – disconnect switch -3P – 30A – AC
LK4DU3CN
TeSys LK – disconnect switch -3P – 30A – AC
Specifications
Part Number LK4DU3CN
Country of Origin CN
UPC 785901333463
UPC11 78590133346
EAN 3606480510410
Availability N
Lead Time 33
UNSPSC 39122233
ECCN EAR99
HTs Code 8536509065
Prop 65 This product can expose you to chemicals including: Styrene which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov
RoHS Compliant Yes
Discount Schedule I11
Return Indicator Yes
Depth 2.52 inch
Height 4.92 inch
Width 3.13 inch
Characteristics
Range TeSys
Product Name TeSys LK
Product Or Component Type Disconnect Switch
Disconnector Device Type Non-fusible disconnect switch
Suitability For ISOlation Yes
Poles Description 3P
Network Type AC
Network Frequency 50/60 Hz
Ie Rated Operational Current 32 A400 V AC AC-22A IEC 32 A400 V AC AC-23A IEC 32 A690 V AC AC-22A IEC 32 A690 V AC AC-23A IEC 30 A CSA 30 A UL
Ue Rated Operational Voltage 600 V AC 50/60 Hz
Ui Rated Insulation Voltage 690 V
Control Type Rotary handle
Type Of Operating Handle External frontal External right side
Mounting Support Plate
Uimp Rated Imp Wstd Voltage 8 kV IEC
Rated Power In W 15 kW 400 V 18.5 kW 500 V 25 kW 690 V
Rated Power In Hp 10 hp 240 V 30 A AC 20 hp 480 V 28 A AC 25 hp 600 V 28 A AC
Icw Rated Short-Time Wstd Crrt 5.5 kA
Mechanical Durability 10000 cycles
Electrical Durability 6000 cycles
Connections - Terminals lugs-ring terminals 1 0.01 in² (4 mm²)
Height 4.92 in (125 mm)
Width 3.13 in (79.5 mm)
Depth 2.52 in (64 mm)
Standards UL98 IEC 60947-3 CSA C22.2 No 4
Product Certifications CE CSA UL
Category 22640 - IEC DISCONNECT-GS1,LK3
Discount Schedule I11
GTIN 00785901333463
Nbr. Of Units In Pkg. 1
Country Of Origin CN
REACh Free Of SVHC Yes
EU RoHs Directive Compliant
Toxic Heavy Metal Free Yes
Mercury Free Yes
Warranty 18 months
