| Range |
TeSys |
| Product Name |

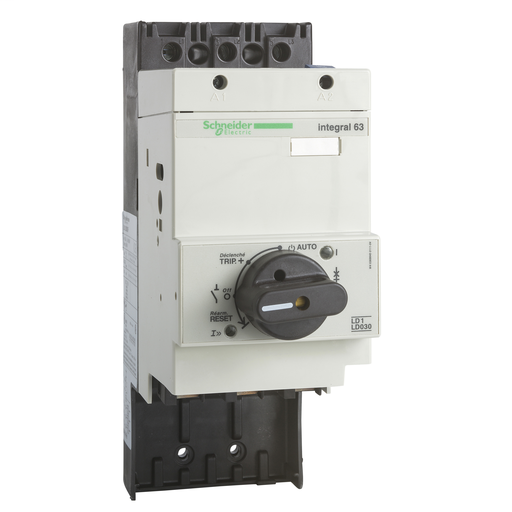

TeSys Integral 63 |
| Product Or Component Type |
Contactor breaker |
| Device Short Name |
LD4LD |
| Utilisation Category |
AC-43
AC-1 |
| Poles Description |
3P |
| Ue Rated Operational Voltage |
690 V AC 50/60 Hz |
| Ie Rated Operational Current |
63 A AC AC-1
63 A AC AC-43 |
| Ith Cnvtl Free Air Therm Crrt |
63 A 104 °F (40 °C) |
| Motor Power kW |
15 kW 220...240 V AC 50/60 Hz
30 kW 400 V AC 50/60 Hz
33 kW 415 V AC 50/60 Hz
37 kW 500 V AC 50/60 Hz
55 kW 660 V AC 50/60 Hz
33 kW 440 V AC 50/60 Hz |
| [Uc] Control Circuit Voltage |
24 V DC |
| Test Function |
Self test |
| Control Type |
Knob emergency stop Red front CNOMO |
| Irms Rated Making Capacity |
756 A IEC 60947-4
946 A IEC 60947-4 |
| Ipk Rated Peak Withstand Crrt |
105 kA IEC 60947-2 |
| Breaking Capacity |
Icu 10 kA 600...690 V 0.5) IEC 60947-2
Icu 30 kA 480...525 V 0.25) IEC 60947-6-2
Icu 50 kA <= 440 V 0.25) IEC 60947-2 |
| Ics Rated Service Breaking Cap |
10 kA 600...690 V IEC 60947-2
35 kA 480...525 V IEC 60947-2
50 kA <= 440 V IEC 60947-2 |
| Maximum Breaking Time |
4 ms |
| Thermal Stress Limit |
300000 A².s |
| Uimp Rated Imp Wstd Voltage |
8 kV IEC 60947-4 |
| Ctrl Circuit Voltage Limits |
0.25...0.7 Uc drop-out 131 °F (55 °C)
0.85...1.1 Uc operation 131 °F (55 °C) |
| Ui Rated Insulation Voltage |
690 V IEC 60947-1 |
| Inrush Power In W |
300 W 68 °F (20 °C)) |
| Hold-In Power Consumption W |
8 W 68 °F (20 °C) |
| Heat Dissipation |
5 W 32 A per pole, hot state power circuit
7 W 50 A per pole, hot state power circuit
9 W 63 A per pole, hot state power circuit
4.4 W 25 A per pole, hot state power circuit
5.8 W 40 A per pole, hot state power circuit |
| Operating Time |
15...25 ms DC opening 68 °F (20 °C) control circuit
25...40 ms DC closing 68 °F (20 °C) control circuit |
| Electrical Durability |
1 Mcycles AC-3 3 kA 415 V - after 1 cycle O-CO-r-CO at Isc
0.9 Mcycles AC-3 10 kA 415 V - after 1 cycle O-CO-r-CO at Isc
0.6 Mcycles AC-3 25 kA 415 V - after 1 cycle O-CO-r-CO at Isc
0.5 Mcycles AC-3 35 kA 415 V - after 1 cycle O-CO-r-CO at Isc
0.2 Mcycles AC-3 50 kA 415 V - after 1 cycle O-CO-r-CO at Isc |
| Mechanical Durability |
1.2 Mcycles |
| Connections - Terminals |
Power circuit screw clamp terminals 1 0.01…0.08 in² (6…50 mm²) flexible - without cable end
Power circuit screw clamp terminals 2 0.01…0.04 in² (6…25 mm²) flexible - without cable end
Power circuit screw clamp terminals 1 0.01…0.04 in² (6…25 mm²) flexible - with cable end
Power circuit screw clamp terminals 2 0.01…0.04 in² (6…25 mm²) flexible - with cable end
Power circuit screw clamp terminals 1 0.01…0.08 in² (6…50 mm²) solid |
| Tightening Torque |
Power circuit 53.10 lbf.in (6 N.m) screw clamp terminals |
| Width |
3.54 in (90 mm) |
| Height |
9.57 in (243 mm) |
| Depth |
7.56 in (192 mm) |
| Product Weight |
8.38 lb(US) (3.8 kg) |
| Standards |
NF C 20-040
IEC 60947-4
NF C 63-130
NEN
VDE 0110
VDE 0660
BS 5424
IEC 60364
IEC 60158-1
NF C 63-650
IEC 60947-1
VDE 0113
IEC 60947-2
VDE 0170
BS 4941
IEC 60204-2
NF C 63-110
IEC 60204-1
VDE 0171
NF C 63-120
NBN
VDE 0100
VDE 471
NF C 79-100
BS 4752 |
| Product Certifications |
ASEFA
NKK
LROS (Lloyds register of shipping)
GL
SCC
ASE
DNV
BV
SETI
DEMKO
OVE
USSR
RINA
ASTA
CSA
NEMKO
UL |
| Protective Treatment |
TH |
| Ambient Air Temp For Op |
-4…140 °F (-20…60 °C) |
| Ambient Air Temp For Storage |
-40…176 °F (-40…80 °C) |
| Mechanical Robustness |
Vibrations de-energised3 Gn, 1...300 Hz
Vibrations energised3 Gn, 1...300 Hz
Shocks de-energised8 Gn for 11 ms
Shocks energised8 Gn for 11 ms |
| IP Degree Of Protection |
IP20 B IEC 60144
IP20 B IEC 60529 |
| Operating Altitude |
9842.52 ft (3000 m) without derating |
| Category |
22382 - STRS,INTEGRAL 32&63,OPEN |
| Discount Schedule |
I11 |
| GTIN |
00785901920045 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Compliant |
| Mercury Free |
Yes |
