LX1LD1109

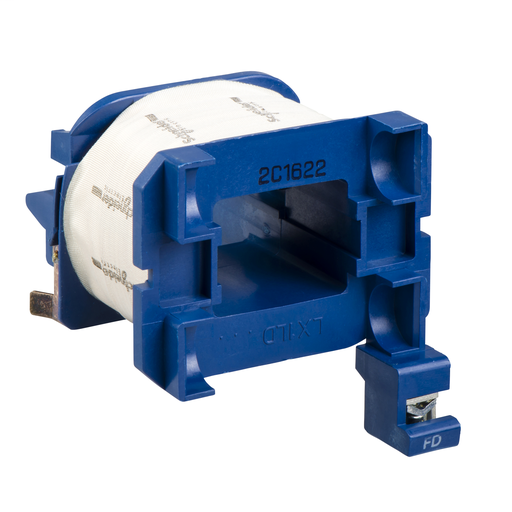

TeSys Integral – coil – 110 V AC
Specifications
| Part Number | LX1LD1109 |
|---|---|
| Country of Origin | FR |
| UPC | 785901263531 |
| UPC11 | 78590126353 |
| EAN | 3389110246490 |
| Availability | S |
| Lead Time | 22 |
| UNSPSC | 39121529 |
| ECCN | EAR99 |
| HTs Code | 8538908160 |
| Prop 65 | This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov |
| Discount Schedule | I11 |
| Return Indicator | No |
| Weight | 0.66 pound |
Characteristics
| Range | TeSys |
|---|---|
| Product Or Component Type | Coil |
| Range Compatibility | TeSys Integral contactor breaker |
| Device Short Name | LX1 |
| Control Circuit Type | AC |
| Uc Control Circuit Voltage | 110 V AC |
| Inductance Of Closed Circuit | 1.48 H |
| Ctrl Circuit Voltage Limits | Operational 0.85...1.1 Uc 131 °F (55 °C)) Drop-out 0.25...0.7 Uc 131 °F (55 °C)) |
| Inrush Power In VA | 350…400 VA 50 Hz 0.55 |
| Hold-In Power Consumption Va | 20…30 VA 50 Hz 0.28 |
| Product Weight | 0.66 lb(US) (0.3 kg) |
| Category | 22384 - STARTERS,INTEGRAL,ACCESS |
| Discount Schedule | I11 |
| GTIN | 00785901263531 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Warranty | 18 months |
